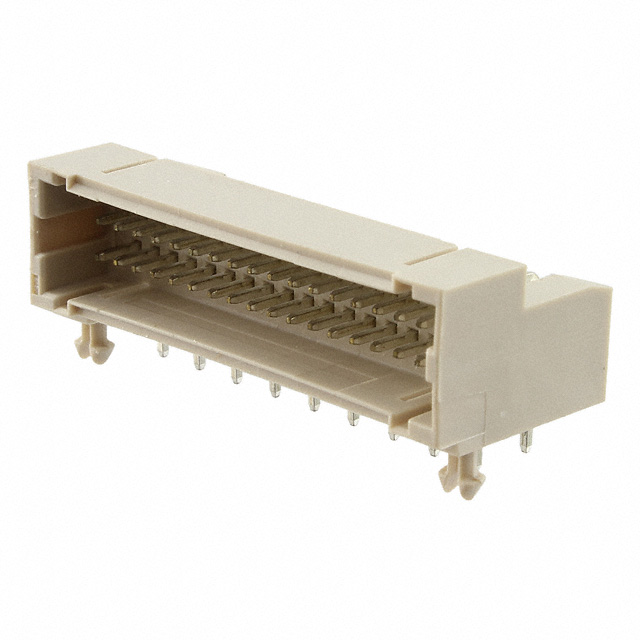

3-292262-4
Or copy the link below:
- Mfr.Part #
- 3-292262-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 34POS 1.5MM
- Stock
- 1,012
- In Stock ：
- 1,012
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Radiation Hardening :
- No
- Color :
- Grey
- PCB Mount Retention :
- With
- Current Rating (Amps) :
- Varies by WireGAuge
- RoHS Status :
- RoHS Compliant
- Contact Type :
- Male Pin
- Height :
- 13.14958mm
- Approval Agency :
- UL
- Applications :
- GENERAL PURPOSE
- Contact Shape :
- Square
- Factory Lead Time :
- 25 Weeks
- Current Rating :
- 2A
- Mating Retention :
- With
- Contact Plating :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Shape :
- RECTANGULAR
- Pitch - Mating :
- 0.059 1.50mm
- Termination :
- Solder
- Orientation :
- RIGHT ANGLE
- Sealable :
- No
- Contact Length - Post :
- 0.118 3.00mm
- Lead Free :
- Lead Free
- Mounting Type :
- Through Hole, Right Angle
- Wire/Cable Type :
- Discrete
- PCB Thickness :
- 1.6002mm
- Fastening Type :
- Detent Lock
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mount :
- Through Hole
- Contact Finish Thickness - Mating :
- 1μm
- Length - Tail :
- 3mm
- Shrouding :
- Shrouded - 4 Wall
- Number of Rows :
- 2
- Operating Supply Voltage :
- 50V
- Series :
- Mini CT
- Contact Material :
- Brass
- Housing Color :
- Natural
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Length :
- 31mm
- Pitch :
- 1.5mm
- Contact Current Rating :
- 2A
- Number of Contacts :
- 34
- Insulation Diameter :
- 1.0414 mm
- Feature :
- Board Lock
- PCB Mounting Orientation :
- RIGHT ANGLE
- Housing Material :
- Nylon
- Style :
- Board to Cable/Wire
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Mating :
- Tin
- Width :
- 9.1mm
- Insulation Height :
- 0.358 9.10mm
- Min Operating Temperature :
- -22°C
- Voltage - Rated :
- 50VAC
- ELV :
- Compliant
- Contact Finish - Post :
- Tin
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Insulation Color :
- Gray
- Wire/Cable Gauge :
- 24 AWG
- PCB Mount Alignment :
- With
- Number of Positions :
- 34
- Published :
- 2004
- Operating Temperature :
- -30°C~105°C
- Flammability Rating :
- UL94 V-0
- Mating Post Length :
- 2.8956mm
- Connector Type :
- Header
- Max Operating Temperature :
- 221°C
- Packaging :
- Tray
- Datasheets
- 3-292262-4
Mini CT Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Tin Polyamide (PA), Nylon, Glass Filled 34-Position Board to Cable/Wire 0.358 9.10mm Height
3-292262-4 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the Mini CT Series, it belongs to the range of products of that series.A temperature below 221°C is best for using it.The device must run at -22°C degrees.This device may be used for the purpose of General Purpose.A number of features make the Board Lock feature more powerful.Through Hole represents the mounting point for the part.You're going to need 50V to power this memory.-30°C~105°C Operating Temperature is the default operating temperature for the device.
3-292262-4 Features
Mini CT series
3-292262-4 Applications
There are a lot of TE Connectivity AMP Connectors
3-292262-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
