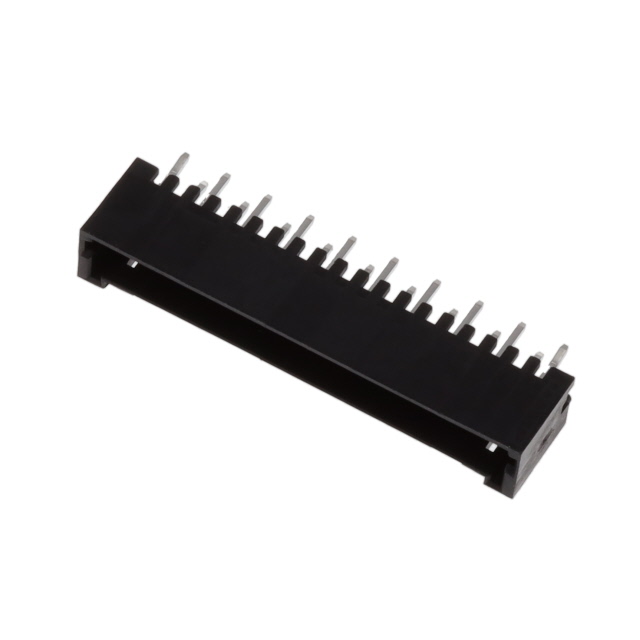

3-292207-9
Or copy the link below:
- Mfr.Part #
- 3-292207-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 19POS 1.5MM
- Stock
- 17,613
- In Stock ：
- 17,613
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 1
- Pitch - Mating :
- 0.059 1.50mm
- Termination :
- Kinked Pin, Solder
- Contact Length - Post :
- 0.118 3.00mm
- Overall Contact Length :
- 0.307 7.80mm
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Brass
- Current Rating :
- 2A
- Contact Finish - Mating :
- Tin
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.272 6.91mm
- PCB Mount Retention :
- With
- Number of Positions :
- 19
- Series :
- Mini CT
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Factory Lead Time :
- 25 Weeks
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- 0.094 2.40mm
- Contact Shape :
- Square
- Fastening Type :
- Detent Lock
- Width :
- 4.699mm
- Feature :
- Board Guide
- Current Rating (Amps) :
- Varies by WireGAuge
- Voltage - Rated :
- 50VAC
- Length :
- 30.988mm
- Orientation :
- Vertical
- Shrouding :
- Shrouded - 4 Wall
- Operating Temperature :
- -30°C~105°C
- Packaging :
- Bulk
- Mounting Type :
- Through Hole
- Number of Positions Loaded :
- All
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Operating Supply Voltage :
- 50V
- Contact Type :
- Male Pin
- Insulation Color :
- Black
- Published :
- 2004
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- GENERAL PURPOSE
- Datasheets
- 3-292207-9
Mini CT Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Polyamide (PA), Nylon, Glass Filled 19-Position Board to Cable/Wire 0.272 6.91mm Height
3-292207-9 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Mini CT Series, it can be found in this category.A possible application of the device would be General Purpose.With its Board Guide feature, it is more powerful in many ways.The memory's operating supply voltage is 50V.The device is operating at -30°C~105°C Operating Temperature.
3-292207-9 Features
Mini CT series
3-292207-9 Applications
There are a lot of TE Connectivity AMP Connectors
3-292207-9 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
