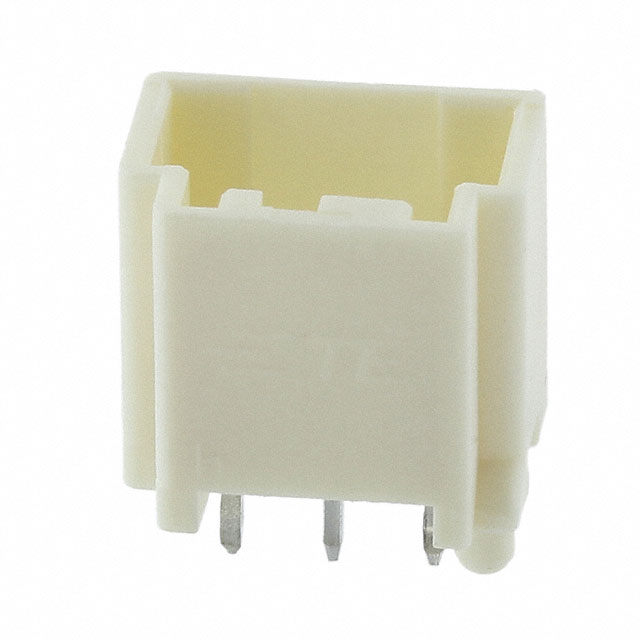

3-1971800-1
Or copy the link below:
- Mfr.Part #
- 3-1971800-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2.5MM
- Stock
- 2,768
- In Stock ：
- 2,768
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish - Mating :
- Tin
- Number of Contacts :
- 3
- Termination :
- Kinked Pin, Solder
- Contact Type :
- Male Pin
- Fastening Type :
- Latch Holder
- Mount :
- Through Hole
- Feature :
- Board Guide
- Contact Current Rating :
- 3A
- Min Operating Temperature :
- -67°C
- Height :
- 7.38mm
- Pitch :
- 2.5mm
- Factory Lead Time :
- 15 Weeks
- Operating Temperature :
- -30°C~105°C
- ELV :
- Compliant
- Current Rating (Amps) :
- Varies by WireGAuge
- Housing Color :
- Natural
- Width - Tab :
- 500.38μm
- Current Rating :
- 3A
- Mounting Type :
- Through Hole
- Insulation Height :
- 0.346 8.80mm
- Style :
- Board to Cable/Wire
- Housing Material :
- Nylon
- Packaging :
- Bulk
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Mating :
- 2μm
- Pitch - Mating :
- 0.098 2.50mm
- Wire Gauge (Min) :
- 22 AWG
- Contact Finish - Post :
- Tin
- Contact Material :
- COPPER ALLOY
- Insulation Material :
- Thermoplastic
- Flammability Rating :
- UL94 V-0
- Length :
- 10mm
- Series :
- Grace Inertia, GIC
- Plating :
- Tin
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 3
- Color :
- Natural
- PCB Mount Retention :
- With
- Plating Thickness :
- 2μm
- Length - Tail :
- 3mm
- PCB Mount Alignment :
- With
- Number of Rows :
- 1
- Material Flammability Rating :
- UL94 V-0
- Max Operating Temperature :
- 221°C
- Contact Style :
- Straight
- Voltage - Rated :
- 50V
- Wire Gauge (Max) :
- 28 AWG
- Contact Gender :
- Male
- Operating Supply Voltage :
- 50V
- Applications :
- GENERAL PURPOSE
- Shrouding :
- Shrouded - 4 Wall
- Underplate Material :
- Nickel
- Contact Shape :
- Square
- Insulation Color :
- Natural
- Sealable :
- No
- Connector Type :
- Header
- Orientation :
- Vertical
- Mating Retention :
- With
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- PCB Mounting Orientation :
- Vertical
- PCB Thickness :
- 2mm
- Contact Plating :
- Tin
- Published :
- 2012
- Datasheets
- 3-1971800-1
Grace Inertia, GIC Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin Thermoplastic 3-Position Board to Cable/Wire 0.346 8.80mm Height
3-1971800-1 Overview
You get it in Header packaging.Mounting type Through Hole is selected for the device.Packaged in a Bulk case.A member of the Grace Inertia, GIC Series.Using it at a temperature below 221°C is ideal.A minimum temperature of -67°C is needed for this device.Here's a possible application for the device: General Purpose.This feature renders it more powerful in a number of ways because of its Board Guide feature.There's a Through Hole mount on the part.It operates at a voltage of 50V.Device runs in -30°C~105°C operating temperature.
3-1971800-1 Features
Grace Inertia, GIC series
3-1971800-1 Applications
There are a lot of TE Connectivity AMP Connectors
3-1971800-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
