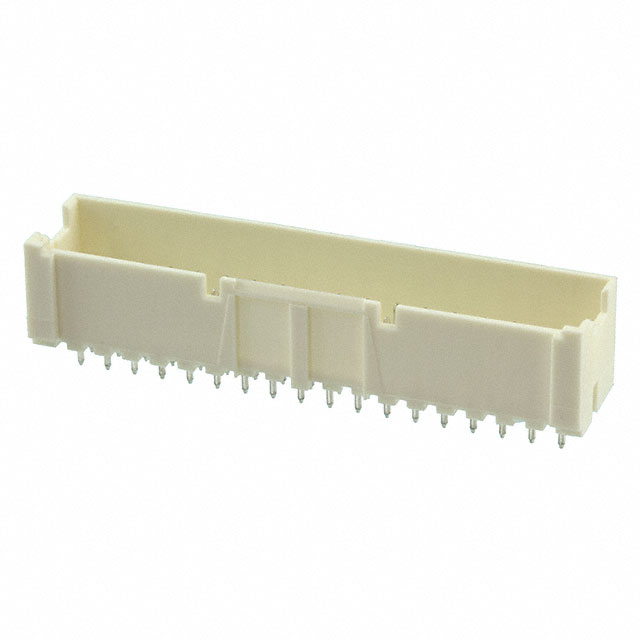

3-1969584-6
Or copy the link below:
- Mfr.Part #
- 3-1969584-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 36POS 2.5MM
- Stock
- 992
- In Stock ：
- 992
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Feature :
- Glow Wire Compliant
- Length - Tail :
- 3.4mm
- Mount :
- Through Hole
- ELV :
- Compliant
- Number of Rows :
- 2
- Insulation Color :
- White
- Insulation Material :
- Polyamide (PA), Nylon
- Row Spacing - Mating :
- 0.098 (2.50mm)
- Insulation Height :
- 0.386 9.80mm
- Plating Thickness :
- 2.03μm
- Applications :
- General Purpose, Industrial, Lighting
- Mounting Type :
- Through Hole
- Orientation :
- Vertical
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Circular
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Housing Material :
- Nylon
- Fastening Type :
- Friction Lock
- Shrouding :
- Shrouded - 4 Wall
- Contact Material :
- Brass
- Published :
- 2014
- Pitch - Mating :
- 0.098 2.50mm
- Contact Finish - Mating :
- Tin
- RoHS Status :
- RoHS Compliant
- Length :
- 47.9044mm
- Contact Type :
- Male Pin
- Contact Style :
- Straight
- Voltage - Rated :
- 250VAC
- Factory Lead Time :
- 17 Weeks
- Series :
- Economy Power 2.5
- Termination :
- Kinked Pin, Solder
- Contact Length - Post :
- 0.134 3.40mm
- Packaging :
- Bulk
- Contact Current Rating :
- 4.2A
- Style :
- Board to Cable/Wire
- Height :
- 9.8mm
- Operating Temperature :
- -55°C~105°C
- Width :
- 10.16mm
- Number of Positions :
- 36
- Datasheets
- 3-1969584-6
Economy Power 2.5 Series 2-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Polyamide (PA), Nylon 36-Position Board to Cable/Wire 0.386 9.80mm Height
3-1969584-6 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Economy Power 2.5 Series of products.It is possible for the device to be used for the application General Purpose, Industrial, Lighting.A number of features make it more powerful because of its Glow Wire Compliant feature.Through Hole mounts the part.There is no operating temperature for the device.
3-1969584-6 Features
Economy Power 2.5 series
3-1969584-6 Applications
There are a lot of TE Connectivity AMP Connectors
3-1969584-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
