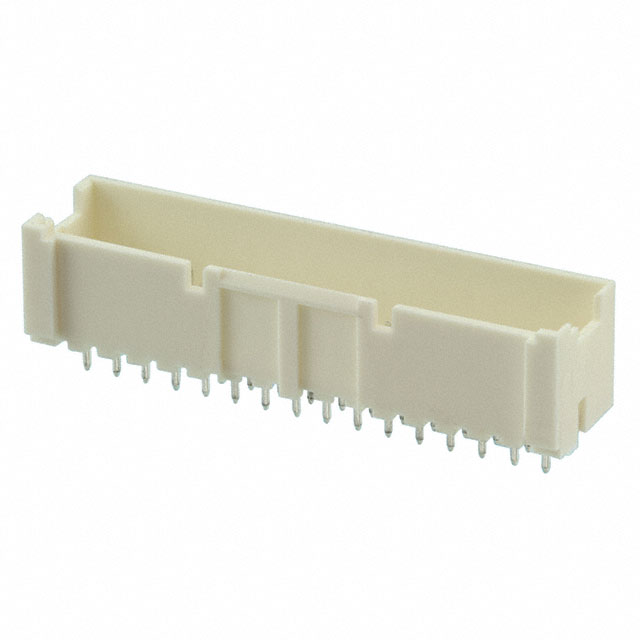

3-1969584-2
Or copy the link below:
- Mfr.Part #
- 3-1969584-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 32POS 2.5MM
- Stock
- 3,840
- In Stock ：
- 3,840
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Width :
- 10.16mm
- Current Rating (Amps) :
- 4.2A
- Voltage - Rated :
- 250VAC
- Housing Material :
- Nylon
- Insulation Color :
- White
- Number of Rows :
- 2
- ELV :
- Compliant
- Contact Style :
- Straight
- Min Operating Temperature :
- -67°C
- Operating Temperature :
- -55°C~105°C
- Row Spacing - Mating :
- 0.098 (2.50mm)
- Factory Lead Time :
- 16 Weeks
- Mounting Type :
- Through Hole
- Length - Tail :
- 3.4mm
- Orientation :
- Vertical
- Pitch - Mating :
- 0.098 2.50mm
- Series :
- Economy Power 2.5
- Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 32
- Contact Finish - Post :
- Tin
- Contact Length - Post :
- 0.134 3.40mm
- Insulation Height :
- 0.386 9.80mm
- Number of Positions Loaded :
- All
- Shrouding :
- Shrouded - 4 Wall
- Plating Thickness :
- 2.03μm
- RoHS Status :
- RoHS Compliant
- Contact Finish - Mating :
- Tin
- Insulation Material :
- Polyamide (PA), Nylon
- Style :
- Board to Cable/Wire
- Contact Current Rating :
- 4.2A
- Connector Type :
- Header
- Feature :
- Glow Wire Compliant
- Packaging :
- Bulk
- PCB Mounting Orientation :
- Vertical
- Applications :
- General Purpose, Industrial, Lighting
- Housing Color :
- White
- Termination :
- Kinked Pin, Solder
- Height :
- 9.8mm
- Contact Type :
- Male Pin
- Contact Plating :
- Tin
- Mount :
- Through Hole
- Pitch :
- 2.5mm
- Fastening Type :
- Friction Lock
- Length :
- 42.89mm
- Max Operating Temperature :
- 221°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2014
- Contact Shape :
- Circular
- Datasheets
- 3-1969584-2
Economy Power 2.5 Series 2-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Polyamide (PA), Nylon 32-Position Board to Cable/Wire 0.386 9.80mm Height
3-1969584-2 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Economy Power 2.5 Series, it can be found in this category.Temperatures below 221°C are best for using it.There's a minimum temperature of -67°C for this device.A possible application of the device would be General Purpose, Industrial, Lighting.With its Glow Wire Compliant feature, it is more powerful in many ways.In this case, Through Hole mounts the part.The device is operating at -55°C~105°C Operating Temperature.
3-1969584-2 Features
Economy Power 2.5 series
3-1969584-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-1969584-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
