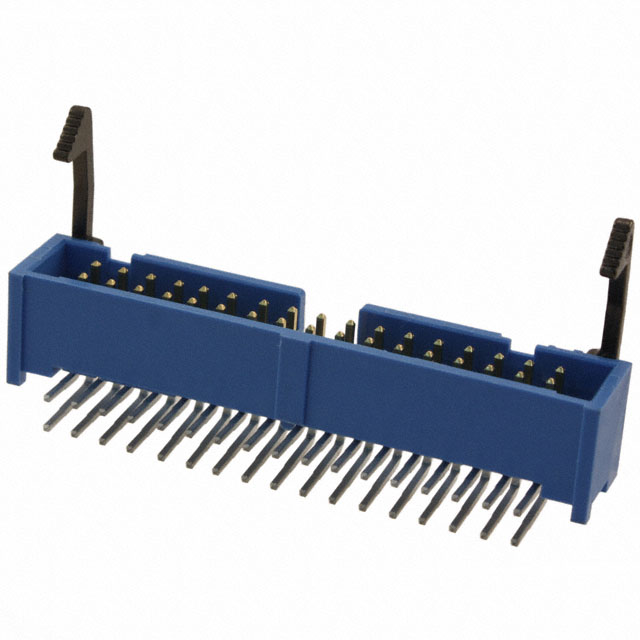

3-1761607-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Orientation :

RIGHT ANGLE

Option :

GENERAL PURPOSE

PCB Mounting Orientation :

RIGHT ANGLE

UL Flammability Code :

94V-0

Operating Temperature :

-65°C~105°C

Circuit Application :

Signal

Number of Rows :

2

JESD-609 Code :

e3

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Number Of PCB Rows :

2

IEC Conformance :

No

Series :

AMP-Latch

Max Voltage Rating (AC) :

250V

Shrouding :

Shrouded - 4 Wall

Housing Color :

Blue

Shrouded End Dimension :

3.76 mm

Insulation Resistance :

5GOhm

Depth :

25.83mm

Contact Type :

Male Pin

HTS Code :

8536.69.40.40

Style :

Board to Cable/Wire

Number of Conductors :

ONE

Length :

50.8mm

Factory Lead Time :

9 Weeks

Current Rating (Amps) :

1A per Contact

Contact Length - Post :

0.102 2.60mm

Number of Positions Loaded :

All

ECCN Code :

EAR99

Insulation Material :

Polybutylene Terephthalate (PBT)

Mount :

Through Hole

Contact Length - Mating :

0.237 6.02mm

Packaging :

Tube

Mating Contact Pitch :

0.1 inch

Material :

Thermoplastic

Contact Finish Thickness - Post :

100.0μin 2.54μm

Mounting Type :

Through Hole, Right Angle

MIL Conformance :

No

Contact Material :

Phosphor Bronze

Mating Connector Lock :

Without

REACH SVHC :

Unknown

DIN Conformance :

No

Contact Current Rating :

1A

Insulation Height :

0.362 9.20mm

Termination :

Solder

Lead Free :

Lead Free

Polarization Key :

DUAL POLARIZED

RoHS Status :

RoHS Compliant

Housing Material :

PBT

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Length :

2.6mm

Height :

9.19mm

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Reference Standard :

UL

Width :

50.8mm

Connector Type :

Header

Operating Supply Voltage :

250V

Material Flammability Rating :

UL94 V-0

Row Spacing - Mating :

0.100 (2.54mm)

ELV :

Compliant

Contact Finish - Mating :

Gold or Gold-Palladium

Radiation Hardening :

No

Lead Pitch :

2.54mm

Flammability Rating :

UL94 V-0

Reliability :

COMMERCIAL

Number of Positions :

34

PCB Contact Pattern :

RECTANGULAR

Pitch - Mating :

0.100 2.54mm

Fastening Type :

Latch Lock/Eject Hooks, Long

Pbfree Code :

yes

Additional Feature :

LATCHED, POLARIZED

Published :

2009

Contact Gender :

Male

Feature :

Keying Slot

Mixed Contacts :

No

Voltage - Rated :

250VAC

Current Rating :

1A

Contact Shape :

Square

Filter Feature :

No

Contact Finish - Post :

Tin
