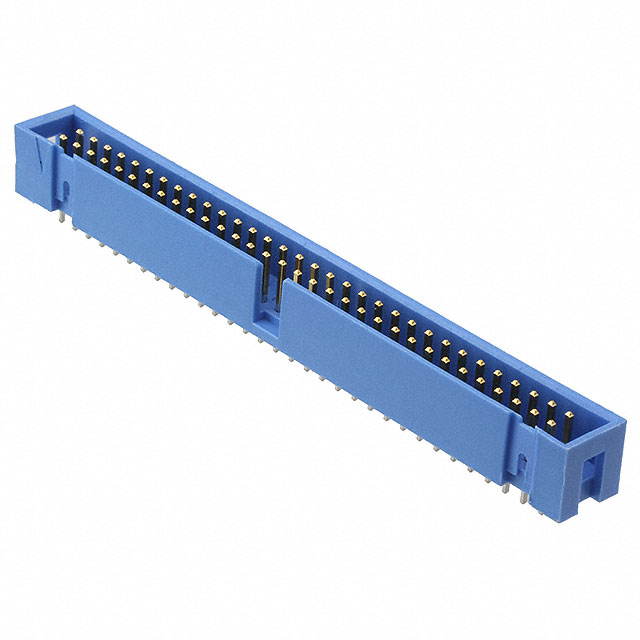

3-1761603-7
Or copy the link below:
- Mfr.Part #
- 3-1761603-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 64POS 2.54MM
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Operating Temperature :
- -65°C~105°C
- Lead Free :
- Lead Free
- Termination :
- Solder
- Style :
- Board to Cable/Wire
- Mount :
- Through Hole
- Insulation Color :
- Blue
- Number of Positions Loaded :
- All
- Contact Material :
- Phosphor Bronze
- Operating Supply Voltage :
- 250V
- Circuit Application :
- Signal
- Contact Type :
- Male Pin
- Pitch :
- 2.54mm
- Mounting Type :
- Through Hole
- Housing Material :
- PBT
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Pitch - Mating :
- 0.100 2.54mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Color :
- Blue
- Contact Length - Mating :
- 0.240 6.10mm
- Fastening Type :
- Push-Pull
- Contact Finish - Mating :
- Gold
- Length :
- 88.9mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Depth :
- 9.22mm
- Series :
- AMP-Latch
- Packaging :
- Bulk
- Shrouding :
- Shrouded - 4 Wall
- Number of Contacts :
- 64
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Insulation Resistance :
- 5GOhm
- Lead Length :
- 2.6mm
- Feature :
- Keying Slot
- Contact Finish - Post :
- Tin
- Contact Shape :
- Square
- Housing Color :
- Blue
- Contact Current Rating :
- 1A
- Orientation :
- Vertical
- Max Operating Temperature :
- 105°C
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Length - Post :
- 0.102 2.60mm
- PCB Mounting Orientation :
- Vertical
- Radiation Hardening :
- No
- ELV :
- Compliant
- Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -65°C
- Number of Positions :
- 64
- Insulation Height :
- 0.350 8.89mm
- Number of Rows :
- 2
- Contact Plating :
- Gold, Tin
- RoHS Status :
- RoHS Compliant
- Shrouded End Dimension :
- 3.81 mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Current Rating :
- 1A
- Contact Gender :
- Male
- Connector Type :
- Header
- Current Rating (Amps) :
- 1A per Contact
- Mating Connector Lock :
- Without
- Height :
- 8.89mm
- Published :
- 2009
- PCB Mount Retention :
- Without
- Factory Lead Time :
- 13 Weeks
- Voltage - Rated :
- 250VAC
- Datasheets
- 3-1761603-7
AMP-Latch Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Polybutylene Terephthalate (PBT) 64-Position Board to Cable/Wire 0.350 8.89mm Height
3-1761603-7 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the AMP-Latch Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -65°C degrees.A number of features make the Keying Slot feature more powerful.Through Hole represents the mounting point for the part.You're going to need 250V to power this memory.-65°C~105°C Operating Temperature is the default operating temperature for the device.
3-1761603-7 Features
AMP-Latch series
3-1761603-7 Applications
There are a lot of TE Connectivity AMP Connectors
3-1761603-7 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
