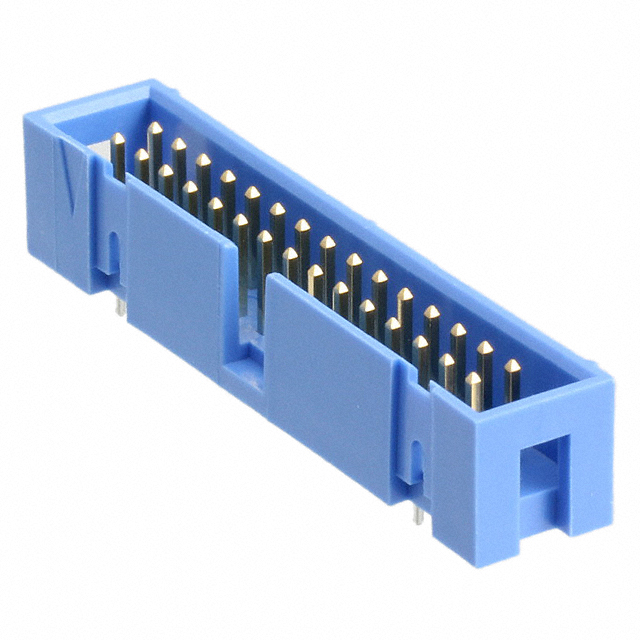

3-1761603-0

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Published :

2009

Feature :

Keying Slot

Number of Positions Loaded :

All

UL Flammability Code :

94V-0

Operating Temperature :

-65°C~105°C

Circuit Application :

Signal

Contact Shape :

Square

Option :

GENERAL PURPOSE

Contact Plating :

Gold, Tin

Reference Standard :

UL

JESD-609 Code :

e4

Mount :

Through Hole

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Material :

Polybutylene Terephthalate (PBT)

Pitch - Mating :

0.100 2.54mm

PCB Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Radiation Hardening :

No

Contact Type :

Male Pin

ECCN Code :

EAR99

Mounting Type :

Through Hole

Contact Length - Mating :

0.240 6.10mm

Lead Length :

2.6mm

Connector Type :

Header

HTS Code :

8536.69.40.40

Contact Gender :

Male

ELV :

Compliant

Dielectric Withstanding Voltage :

1000VAC V

IEC Conformance :

No

Shrouded End Dimension :

3.81 mm

Packaging :

Bulk

Insulation Height :

0.350 8.89mm

Contact Finish - Post :

Tin

DIN Conformance :

No

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Mating Connector Lock :

Without

Number of Rows :

2

Style :

Board to Cable/Wire

Flammability Rating :

UL94 V-0

Orientation :

Vertical

Insulation Resistance :

5GOhm

Insulation Color :

Blue

Contact Current Rating :

1A

Fastening Type :

Push-Pull

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Body Breadth :

0.363 inch

Height :

8.89mm

Current Rating (Amps) :

1A per Contact

Voltage - Rated :

250VAC

Contact Material :

Phosphor Bronze

Termination :

Solder

Contact Length - Post :

0.102 2.60mm

Depth :

9.22mm

Length :

45.72mm

Filter Feature :

No

Number Of PCB Rows :

2

Number of Positions :

30

Mating Contact Pitch :

0.1 inch

Number of Conductors :

ONE

RoHS Status :

RoHS Compliant

Factory Lead Time :

13 Weeks

Shrouding :

Shrouded - 4 Wall

Current Rating :

1A

Contact Finish Thickness - Post :

100.0μin 2.54μm

Operating Supply Voltage :

250V

MIL Conformance :

No

Contact Finish - Mating :

Gold

Housing Material :

PBT

Reliability :

COMMERCIAL

Series :

AMP-Latch

Polarization Key :

POLARIZED HOUSING
