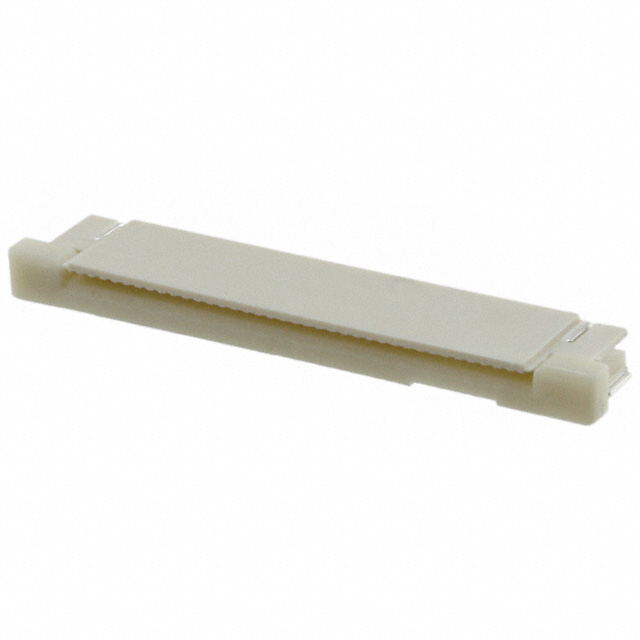

3-1734839-7
Or copy the link below:
- Mfr.Part #
- 3-1734839-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC TOP 37POS 0.50MM R/A
- Stock
- 17,290
- In Stock ：
- 17,290
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Operating Temperature :
- -20°C~85°C
- Gender :
- Receptacle
- Height Above Board :
- 0.081 2.05mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Width :
- 5.1mm
- Housing Material :
- Thermoplastic
- Contact Plating :
- Gold
- Contact Current Rating :
- 500mA
- Circuit Application :
- Signal
- Shielding :
- Unshielded
- Factory Lead Time :
- 17 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- FFC, FCB Thickness :
- 0.30mm
- Height :
- 2.05mm
- Cable End Type :
- Tapered
- Flat Flex Type :
- FPC
- Termination :
- Solder
- Max Operating Temperature :
- 85°C
- Sealable :
- No
- REACH SVHC :
- Unknown
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Surface Mount
- Current Rating (Amps) :
- 0.5A
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Published :
- 2006
- Number of Rows :
- 1
- ELV :
- Compliant
- Voltage - Rated :
- 250V
- Contact Finish :
- Gold
- Connector Type :
- Connector, Receptacle, Socket
- Actuator Material :
- Thermoplastic
- Locking Feature :
- Slide Lock
- Contact Finish Thickness :
- Flash
- Number of Positions :
- 37
- Actuator Color :
- Ivory
- PCB Mount Alignment :
- Without
- Number of Contacts :
- 37
- Housing Color :
- Natural
- Wire/Cable Type :
- Flat Flex
- Plating :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tape and Reel (TR)
- PCB Mount Retention :
- With
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 500mA
- RoHS Status :
- RoHS Compliant
- Connector/Contact Type :
- Contacts, Top
- Operating Supply Voltage :
- 250V
- Contact Material :
- Phosphor Bronze
- Pitch :
- 0.020 0.50mm
- Orientation :
- RIGHT ANGLE
- Min Operating Temperature :
- -40°C
- Mounting Type :
- Surface Mount, Right Angle
- Length :
- 23.93mm
- Datasheets
- 3-1734839-7
FPC Contacts, Top Tape & Reel (TR) 0.020 0.50mm Solder 37 Positions Surface Mount, Right Angle Gold -20°C~85°C 0.5A
3-1734839-7 Overview
Connector, Receptacle, Socket packaging is included.A Surface Mount, Right Angle mounting type is specified for the device.A Tape & Reel (TR) case is used for packaging.You should use it at a temperature below 85°C.Temperatures below -40°C are required for operation of this device.A number of aspects of its Solder Retention, Zero Insertion Force (ZIF) feature make it more powerful.By Surface Mount it's mounted.According to the datasheet, this memory operates at an operating voltage of 250V.In this case, the device runs at -20°C~85°C Operating Temperature.
3-1734839-7 Features
3-1734839-7 Applications
There are a lot of TE Connectivity AMP Connectors
3-1734839-7 FFC, FPC (Flat Flexible) Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
