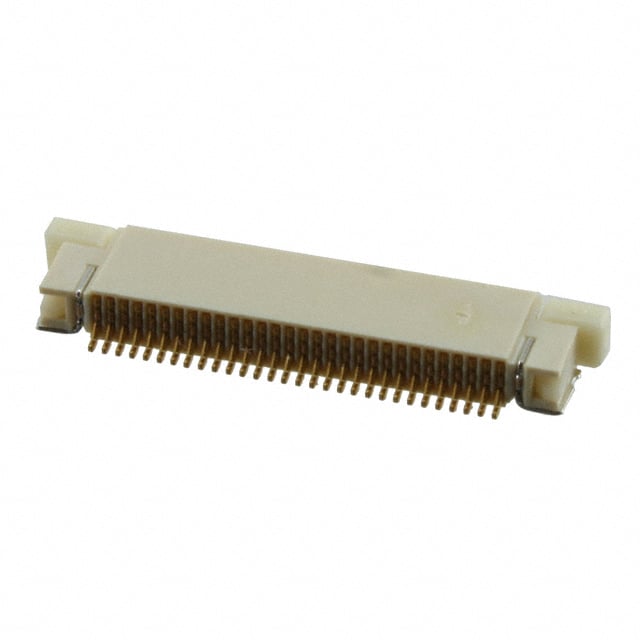

3-1734839-0
Or copy the link below:
- Mfr.Part #
- 3-1734839-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC TOP 30POS 0.50MM R/A
- Stock
- 41,415
- In Stock ：
- 41,415
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Operating Supply Voltage :
- 250V
- Current Rating (Amps) :
- 0.5A
- Housing Color :
- Natural
- Color :
- Beige
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Locking Feature :
- Slide Lock
- Actuator Material :
- Thermoplastic
- Material :
- Thermoplastic
- Width :
- 5.1mm
- Actuator Color :
- Ivory
- Number of Contacts :
- 30
- Gender :
- Receptacle
- Published :
- 2006
- Termination :
- Solder
- Orientation :
- RIGHT ANGLE
- Circuit Application :
- Signal
- Pitch :
- 0.020 0.50mm
- PCB Mount Retention :
- With
- REACH SVHC :
- No SVHC
- PCB Mount Alignment :
- Without
- Mount :
- Surface Mount
- ELV :
- Compliant
- Min Operating Temperature :
- -40°C
- Material Flammability Rating :
- UL94 V-0
- Lead Pitch :
- 500μm
- Contact Location :
- Top
- Sealable :
- No
- Max Operating Temperature :
- 85°C
- Contact Finish :
- Gold
- Lead Free :
- Lead Free
- Shielding :
- Unshielded
- Contact Current Rating :
- 500mA
- Factory Lead Time :
- 16 Weeks
- Operating Temperature :
- -20°C~85°C
- RoHS Status :
- RoHS Compliant
- Mounting Type :
- Surface Mount, Right Angle
- Flat Flex Type :
- FPC
- Connector Type :
- Connector, Receptacle, Socket
- Wire/Cable Type :
- Flat Flex
- Contact Plating :
- Gold
- Number of Rows :
- 1
- Current Rating :
- 500mA
- Number of Positions :
- 30
- Depth :
- 5.1mm
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Height :
- 2.05mm
- Body Plating :
- Gold
- Voltage - Rated :
- 250V
- Packaging :
- Tape and Reel (TR)
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Length :
- 20.42922mm
- FFC, FCB Thickness :
- 0.30mm
- Housing Material :
- Thermoplastic
- Contact Finish Thickness :
- Flash
- Plating :
- Gold
- Connector/Contact Type :
- Contacts, Top
- Height Above Board :
- 0.081 2.05mm
- Contact Material :
- Phosphor Bronze
- Cable End Type :
- Tapered
- Datasheets
- 3-1734839-0
FPC Contacts, Top Tape & Reel (TR) 0.020 0.50mm Solder 30 Positions Surface Mount, Right Angle Gold -20°C~85°C 0.5A
3-1734839-0 Overview
It comes in Connector, Receptacle, Socket packaging.There is a mounting type of Surface Mount, Right Angle for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.You should use it when it's below 85°C.A minimum temperature of -40°C is required for the operation of this device.In many ways, its Solder Retention, Zero Insertion Force (ZIF) feature makes it more powerful.Surface Mount is used to mount the part.The operating supply voltage of this memory is 250V.In this case, the device operates at -20°C~85°C Operating Temperature.
3-1734839-0 Features
3-1734839-0 Applications
There are a lot of TE Connectivity AMP Connectors
3-1734839-0 FFC, FPC (Flat Flexible) Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
