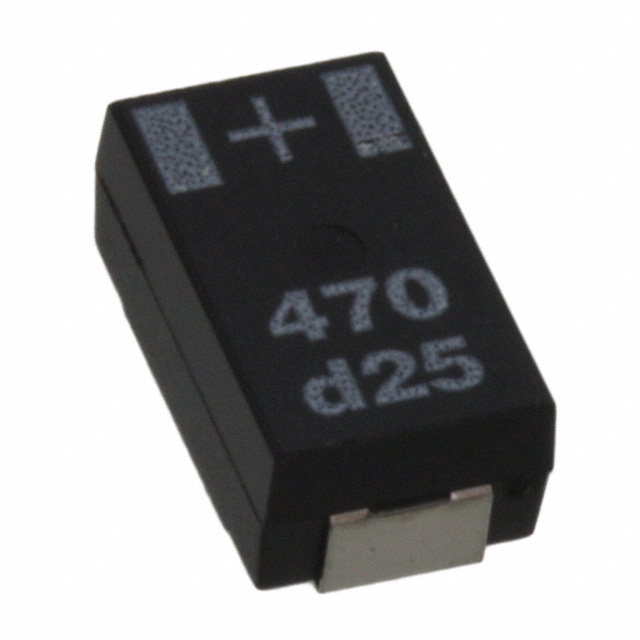

2SW470M

Manufacturer :

Rubycon

Product Category :

Aluminum - Polymer Capacitors

Life (Hours) :

2000 hours

ECCN Code :

EAR99

Voltage - Rated DC :

2V

Size / Dimension :

0.287Lx0.169W 7.30mmx4.30mm

Operating Temperature :

-55°C~105°C

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Height :

2.9mm

Type :

Polymer

Length :

7.3mm

Height Seated (Max) :

0.114 2.90mm

Case Code (Metric) :

7343

Packaging :

Cut Tape (CT)

Lifetime @ Temp :

2000 Hrs @ 105°C

Capacitance :

470µF

Tolerance :

±20%

Mount :

Surface Mount

JESD-609 Code :

e4

Terminal Shape :

WRAPAROUND

Surface Mount Land Size :

0.287Lx0.169W 7.30mmx4.30mm

Rated (DC) Voltage (URdc) :

2V

RoHS Status :

ROHS3 Compliant

Applications :

GENERAL PURPOSE

Ripple Current :

3.5A

Pbfree Code :

yes

Published :

2012

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Tan Delta :

0.1

REACH SVHC :

No SVHC

Width :

4.3mm

Leakage Current :

0.0376mA

Case Code (Imperial) :

2917

Series :

PC-CON, SW

Package / Case :

2917 (7343 Metric)

Polarity :

POLARIZED

Ripple Current (AC) :

3.5A

Packing Method :

TR

Ripple Current @ High Frequency :

3.5A @ 100kHz

ESR (Equivalent Series Resistance) :

9mOhm

Mounting Type :

Surface Mount

Number of Terminations :

2
