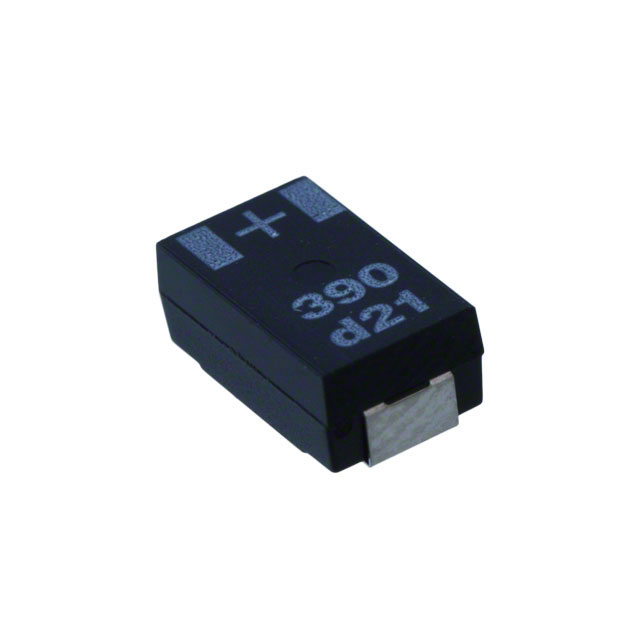

2SW390M

Manufacturer :

Rubycon

Product Category :

Aluminum - Polymer Capacitors

Pbfree Code :

yes

Height :

2.9mm

Length :

7.3mm

Type :

Polymer

Terminal Shape :

WRAPAROUND

ECCN Code :

EAR99

Rated (DC) Voltage (URdc) :

2V

Surface Mount Land Size :

0.287Lx0.169W 7.30mmx4.30mm

Polarity :

POLARIZED

Case Code (Metric) :

7343

Packaging :

Cut Tape (CT)

Package / Case :

2917 (7343 Metric)

Applications :

GENERAL PURPOSE

Width :

4.3mm

ESR (Equivalent Series Resistance) :

9mOhm

Series :

PC-CON, SW

Lifetime @ Temp :

2000 Hrs @ 105°C

Packing Method :

TR

Life (Hours) :

2000 hours

Ripple Current :

3.5A

Ripple Current (AC) :

3.5A

JESD-609 Code :

e4

Height Seated (Max) :

0.114 2.90mm

RoHS Status :

ROHS3 Compliant

Mount :

Surface Mount

Tolerance :

±20%

Tan Delta :

0.1

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Capacitance :

390µF

Ripple Current @ High Frequency :

3.5A @ 100kHz

REACH SVHC :

No SVHC

Mounting Type :

Surface Mount

Case Code (Imperial) :

2917

Number of Terminations :

2

Published :

2012

Leakage Current :

0.0312mA

Size / Dimension :

0.287Lx0.169W 7.30mmx4.30mm

Operating Temperature :

-55°C~105°C

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Voltage - Rated DC :

2V
