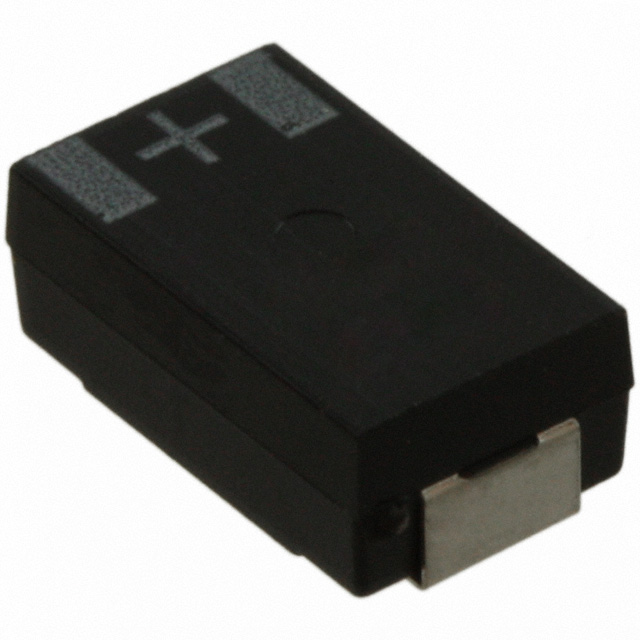

2SW220M

Manufacturer :

Rubycon

Product Category :

Aluminum - Polymer Capacitors

Leakage Current :

0.0176mA

Published :

2012

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Height Seated (Max) :

0.106 2.70mm

Ripple Current @ High Frequency :

3.5A @ 100kHz

Voltage - Rated DC :

2V

Pbfree Code :

yes

Terminal Shape :

WRAPAROUND

Package / Case :

2917 (7343 Metric)

Rated (DC) Voltage (URdc) :

2V

Case Code (Imperial) :

2917

Tolerance :

±20%

Height :

2.7mm

Mount :

Surface Mount

Number of Terminations :

2

Polarity :

POLARIZED

JESD-609 Code :

e4

ECCN Code :

EAR99

Lifetime @ Temp :

2000 Hrs @ 105°C

Packaging :

Cut Tape (CT)

ESR (Equivalent Series Resistance) :

9mOhm

Packing Method :

TR

Type :

Polymer

Case Code (Metric) :

7343

Applications :

GENERAL PURPOSE

Life (Hours) :

2000 hours

Capacitance :

220μF

Width :

4.3mm

Ripple Current (AC) :

3.5A

REACH SVHC :

No SVHC

Operating Temperature :

-55°C~105°C

Ripple Current :

3.5A

Mounting Type :

Surface Mount

Tan Delta :

0.1

Size / Dimension :

0.287Lx0.169W 7.30mmx4.30mm

Surface Mount Land Size :

0.287Lx0.169W 7.30mmx4.30mm

Series :

PC-CON, SW

RoHS Status :

ROHS3 Compliant

Length :

7.3mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)
