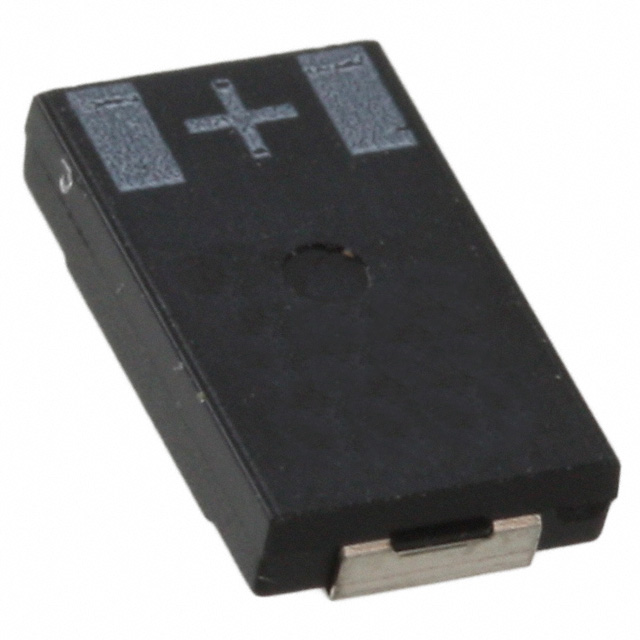

2SLE100M

Manufacturer :

Rubycon

Product Category :

Aluminum - Polymer Capacitors

REACH SVHC :

No SVHC

Voltage - Rated DC :

2V

Applications :

GENERAL PURPOSE

ESR (Equivalent Series Resistance) :

9mOhm

Type :

Polymer

RoHS Status :

ROHS3 Compliant

Terminal Shape :

WRAPAROUND

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Pbfree Code :

yes

Series :

PC-CON, SLE

Polarity :

POLARIZED

Capacitance :

100μF

Ripple Current (AC) :

3A

Ripple Current @ High Frequency :

3A @ 100kHz

Leakage Current :

0.008mA

Mounting Type :

Surface Mount

Lifetime @ Temp :

2000 Hrs @ 105°C

Length :

7.3mm

Published :

2012

Package / Case :

2917 (7343 Metric)

Rated (DC) Voltage (URdc) :

2V

Tan Delta :

0.1

Case Code (Metric) :

7343

Tolerance :

±20%

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Life (Hours) :

2000 hours

Packaging :

Cut Tape (CT)

ECCN Code :

EAR99

Size / Dimension :

0.287Lx0.169W 7.30mmx4.30mm

Width :

4.3mm

Ripple Current :

3A

Case Code (Imperial) :

2917

Surface Mount Land Size :

0.287Lx0.169W 7.30mmx4.30mm

Reach Compliance Code :

Unknown

JESD-609 Code :

e4

Height :

1.4mm

Mount :

Surface Mount

Additional Feature :

ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

Operating Temperature :

-55°C~105°C

Height Seated (Max) :

0.055 1.40mm

Number of Terminations :

2
