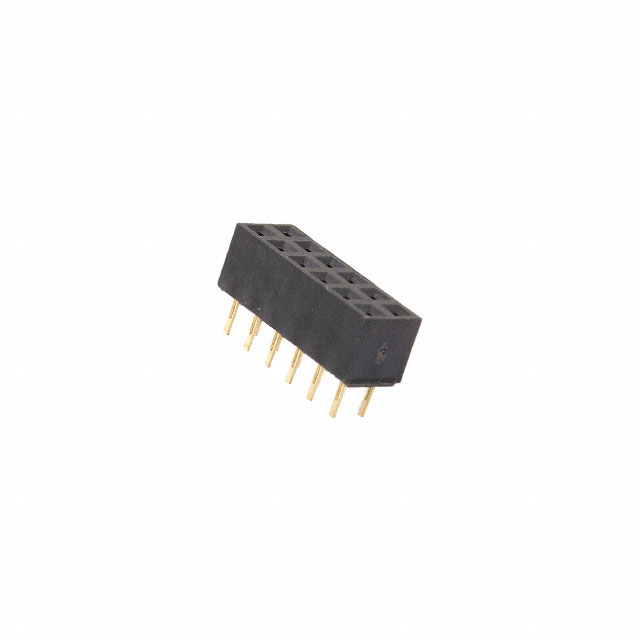

2RS2-12-G

Manufacturer :

Adam Tech

Product Category :

Headers, Receptacles, Female Sockets

Contact Shape :

Square

Body Length or Diameter :

0.474 inch

Reliability :

COMMERCIAL

Connector Type :

Receptacle

Contact Finish Thickness - Mating :

Flash

Length - Termination :

0.094 inch

Body Breadth :

0.165 inch

Number of Positions Loaded :

All

Insulation Resistance :

5000000000Ohm

Insertion Force-Max :

1.39 N

Mating Contact Pitch :

0.079 inch

Termination :

Solder

Contact Material :

Phosphor Bronze

Contact Length - Post :

0.091 2.30mm

Style :

Board to Board

Contact Type :

Female Socket

Body Depth :

0.169 inch

Number of Positions :

12

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e4

Row Spacing - Mating :

0.079 (2.00mm)

Number of Rows :

2

Operating Temperature :

-40°C~105°C

Series :

2RS2

Mounting Type :

Through Hole

PCB Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

2

Fastening Type :

Push-Pull

Dielectric Withstanding Voltage :

1000VAC V

Number of Conductors :

ONE

Factory Lead Time :

9 Weeks

Mounting Option 1 :

LOCKING

Voltage - Rated :

250VAC

Polarization Key :

POLARIZED HOUSING

Reference Standard :

UL, CSA

Insulation Color :

Black

Packaging :

Tube

Contact Finish - Mating :

Gold

RoHS Status :

ROHS3 Compliant

Pitch - Mating :

0.079 2.00mm

Insulation Material :

Polyamide (PA), Nylon

Material Flammability Rating :

UL94 V-0

Current Rating (Amps) :

1A

Applications :

GENERAL PURPOSE

Insulation Height :

0.169 4.30mm

Withdrawl Force-Min :

.7784 N
