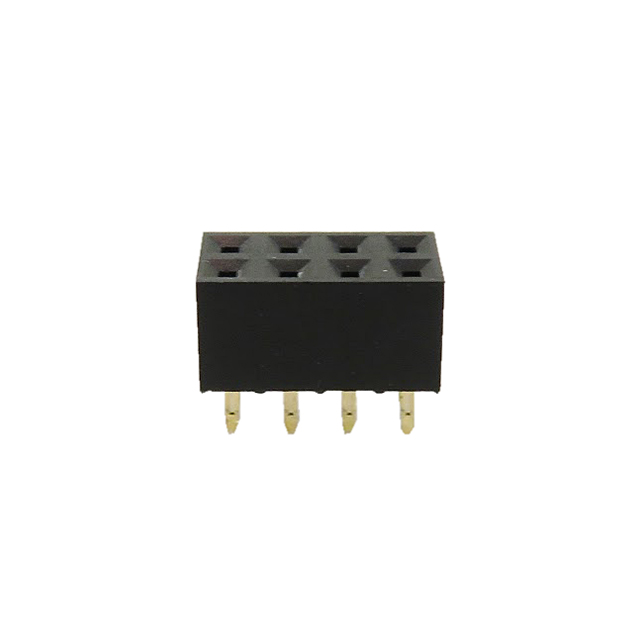

2RS2-08-G

Manufacturer :

Adam Tech

Product Category :

Headers, Receptacles, Female Sockets

JESD-609 Code :

e4

Row Spacing - Mating :

0.079 (2.00mm)

Length - Termination :

0.094 inch

Reference Standard :

UL, CSA

Connector Type :

Receptacle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

8

Mating Contact Pitch :

0.079 inch

Contact Finish - Mating :

Gold

Applications :

GENERAL PURPOSE

Contact Type :

Female Socket

Operating Temperature :

-40°C~105°C

Contact Material :

Phosphor Bronze

Termination :

Solder

Number of Rows :

2

Series :

2RS2

Number Of PCB Rows :

2

Number of Positions Loaded :

All

Body Length or Diameter :

0.316 inch

Number of Conductors :

ONE

Contact Length - Post :

0.091 2.30mm

PCB Contact Pattern :

RECTANGULAR

Dielectric Withstanding Voltage :

1000VAC V

Body Breadth :

0.165 inch

Contact Finish Thickness - Mating :

Flash

Voltage - Rated :

250VAC

Fastening Type :

Push-Pull

Insulation Height :

0.169 4.30mm

Mounting Option 1 :

LOCKING

Packaging :

Tube

Style :

Board to Board

Insulation Resistance :

5000000000Ohm

Body Depth :

0.169 inch

Insulation Material :

Polyamide (PA), Nylon

Material Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole

Pitch - Mating :

0.079 2.00mm

RoHS Status :

ROHS3 Compliant

Contact Shape :

Square

Insulation Color :

Black

Insertion Force-Max :

1.39 N

Current Rating (Amps) :

1A

Factory Lead Time :

9 Weeks

Reliability :

COMMERCIAL

Polarization Key :

POLARIZED HOUSING
