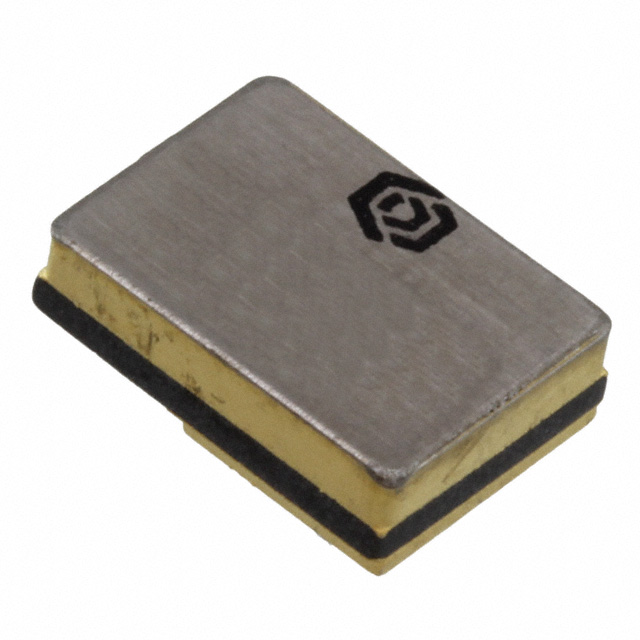

2N7638-GA
Or copy the link below:
- Mfr.Part #
- 2N7638-GA
- Manufacturer
- GeneSiC Semiconductor
- Package / Case
- TO-276AA
- Datasheet
- Download
- Description
- TRANS SJT 650V 8A TO276
- Stock
- 23,424
- In Stock ：
- 23,424
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- GeneSiC Semiconductor
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Mounting Type :
- Surface Mount
- REACH SVHC :
- No SVHC
- Number of Pins :
- 3
- RoHS Status :
- Non-RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Rds On (Max) @ Id, Vgs :
- 170m Ω @ 8A
- Published :
- 2013
- Current - Continuous Drain (Id) @ 25°C :
- 8A Tc 158°C
- Drain to Source Voltage (Vdss) :
- 650V
- Continuous Drain Current (ID) :
- 8A
- Operating Temperature :
- -55°C~225°C TJ
- Packaging :
- Bulk
- Input Capacitance (Ciss) (Max) @ Vds :
- 720pF @ 35V
- Polarity/Channel Type :
- N-Channel
- Package / Case :
- TO-276AA
- Power Dissipation-Max :
- 200W Tc
- Factory Lead Time :
- 18 Weeks
- ECCN Code :
- EAR99
- Mount :
- Surface Mount
- Datasheets
- 2N7638-GA
Bulk 170m Ω @ 8A 720pF @ 35V 650V TO-276AA
2N7638-GA Overview
The input capacitance parameter, CI, is defined as the capacitance between the input terminals of an op amp with either input grounded, and this device's maximal input capacitance is 720pF @ 35V.The drain current is the maximum continuous current the device can conduct, and the continuous drain current (ID) of this device is 8A. Operating this transistor requires a 650V drain to source voltage (Vdss).
2N7638-GA Features
a continuous drain current (ID) of 8A
a 650V drain to source voltage (Vdss)
2N7638-GA Applications
There are a lot of GeneSiC Semiconductor
2N7638-GA applications of single MOSFETs transistors.
- LCD/LED TV
- Consumer Appliances
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
