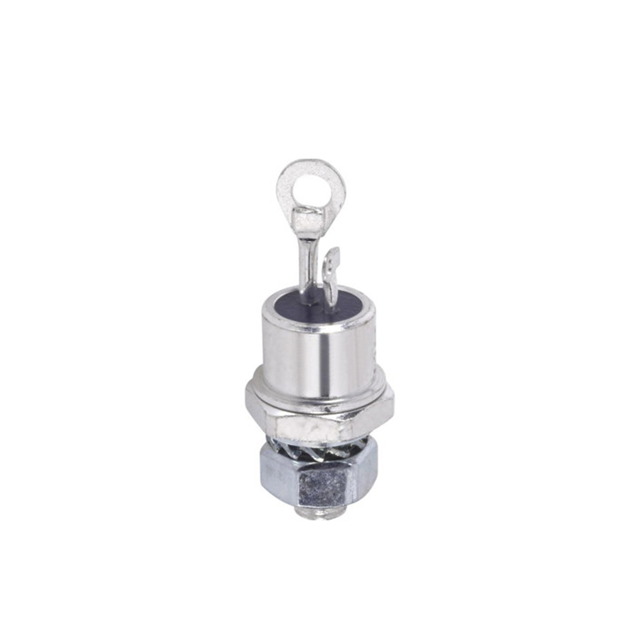

2N682

Manufacturer :

Solid State Inc.

Product Category :

Thyristors - SCRs

Packaging :

Bulk

Terminal Position :

UPPER

Current - Gate Trigger (Igt) (Max) :

40mA

Package / Case :

TO-208AA, TO-48-3, Stud

Repetitive Peak Off-state Voltage :

50V

JESD-30 Code :

O-MUPM-D2

Pbfree Code :

No

Non-Repetitive Pk On-state Cur :

150 A

Current - Off State (Max) :

13mA

Voltage - Gate Trigger (Vgt) (Max) :

2V

Pin Count :

2

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Trigger Device Type :

SCR

Current - Non Rep. Surge 50, 60Hz (Itsm) :

200A @ 60Hz

Critical Rate of Rise of Off-State Voltage-Min :

30V/us

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e0

SCR Type :

Standard Recovery

Terminal Finish :

Tin/Lead (Sn/Pb)

Qualification Status :

Not Qualified

Mounting Type :

Chassis, Stud Mount

Holding Current-Max :

50mA

Hold Current :

100mA

Mount :

Chassis, Stud

Number of Terminations :

2

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

RMS Current (Irms) :

25A

Configuration :

Single

Operating Temperature :

-65°C~125°C

Voltage - Off State :

50V

HTS Code :

8541.30.00.80

Leakage Current (Max) :

6.5mA

RoHS Status :

Non-RoHS Compliant

Terminal Form :

Solder Lug

Reach Compliance Code :

not_compliant

Current - On State (It (RMS)) (Max) :

25A

Published :

2012

Number of Elements :

1

Case Connection :

ANODE

Repetitive Peak Reverse Voltage :

50V
