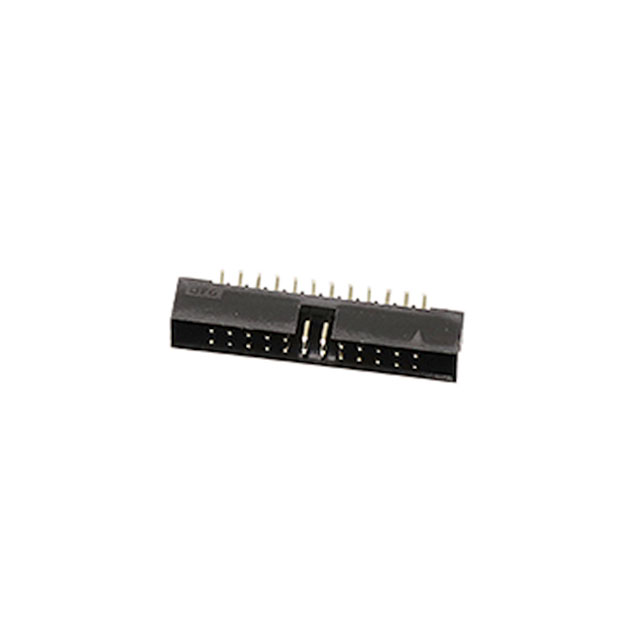

2BHR-24-VUA

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-40°C~105°C

Number Of PCB Rows :

2

Contact Length - Post :

0.110 2.79mm

Packaging :

Bulk

Fastening Type :

Push-Pull

Voltage - Rated :

250VAC

Dielectric Withstanding Voltage :

1000VAC V

ECCN Code :

EAR99

Number of Conductors :

ONE

Contact Type :

Male Pin

Shrouding :

Shrouded - 4 Wall

Mating Contact Pitch :

0.079 inch

Mounting Type :

Through Hole

Number of Positions Loaded :

All

Reference Standard :

UL, CSA

Durability :

500 Cycles

Contact Shape :

Square

Material Flammability Rating :

UL94 V-0

PCB Contact Pattern :

RECTANGULAR

Pitch - Mating :

0.079 2.00mm

Series :

2BHR

Factory Lead Time :

9 Weeks

Termination :

Solder

Contact Material :

Brass

Contact Finish Thickness - Mating :

Flash

Style :

Board to Cable/Wire

HTS Code :

8536.69.40.40

Length - Termination :

0.11 inch

RoHS Status :

ROHS3 Compliant

Row Spacing - Mating :

0.079 (2.00mm)

Insulation Resistance :

5000000000Ohm

Insulation Color :

Black

Mounting Option 1 :

LOCKING

Reliability :

COMMERCIAL

Connector Type :

Header

Feature :

Keying Slot

Current Rating (Amps) :

1A

Insulation Height :

0.220 5.60mm

Additional Feature :

RoHS Compliant

Polarization Key :

POLARIZED HOUSING

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Number of Positions :

24

Contact Finish - Mating :

Gold

Number of Rows :

2
