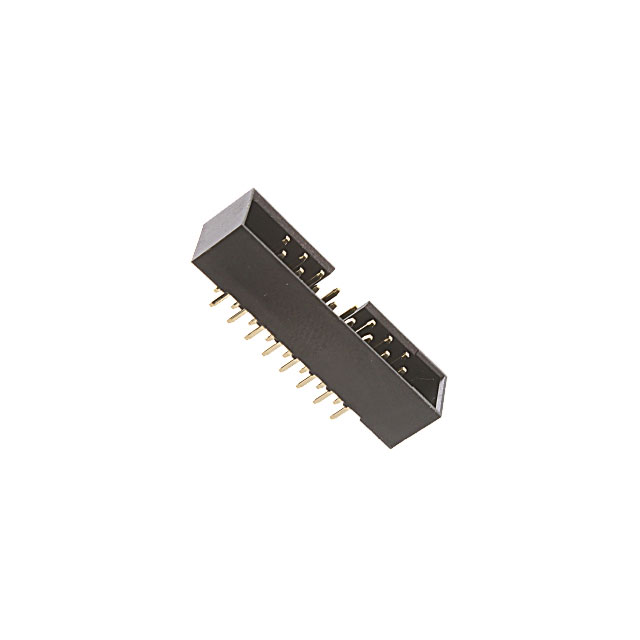

2BHR-16-VUA

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Style :

Board to Cable/Wire

Reference Standard :

UL, CSA

Pitch - Mating :

0.079 2.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number Of PCB Rows :

2

Contact Material :

Brass

Number of Rows :

2

Contact Finish Thickness - Mating :

Flash

Packaging :

Bulk

Reliability :

COMMERCIAL

Contact Finish - Mating :

Gold

Length - Termination :

0.11 inch

Number of Positions Loaded :

All

Series :

2BHR

Mounting Type :

Through Hole

HTS Code :

8536.69.40.40

Contact Type :

Male Pin

Operating Temperature :

-40°C~105°C

Connector Type :

Header

Current Rating (Amps) :

1A

PCB Contact Pattern :

RECTANGULAR

Insulation Resistance :

5000000000Ohm

Mounting Option 1 :

LOCKING

Number of Positions :

16

Contact Length - Post :

0.110 2.79mm

Termination :

Solder

Orientation :

Straight

Number of Conductors :

ONE

Polarization Key :

POLARIZED HOUSING

Body Length or Diameter :

0.913 inch

Fastening Type :

Push-Pull

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

9 Weeks

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Voltage - Rated :

250VAC

Contact Shape :

Square

Feature :

Keying Slot

Durability :

500 Cycles

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Insulation Height :

0.220 5.60mm

Shrouding :

Shrouded - 4 Wall

Additional Feature :

RoHS Compliant

Dielectric Withstanding Voltage :

1000VAC V

Mating Contact Pitch :

0.079 inch

Row Spacing - Mating :

0.079 (2.00mm)

Insulation Color :

Black
