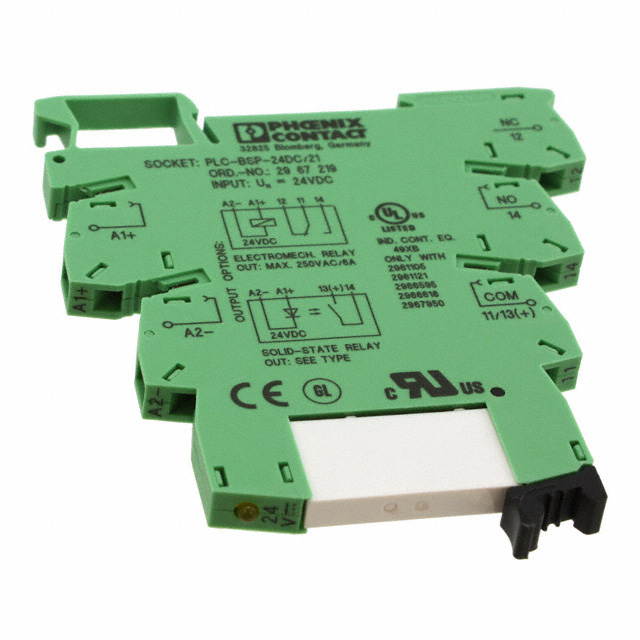

2966472

Manufacturer :

Phoenix Contact

Product Category :

Power Relays, Over 2 Amps

Feature :

Lighted Indicator, Socket Included

Coil Type :

Non Latching

Coil Current :

9mA

Termination Style :

Spring Terminal

Width :

6.2mm

Coil Voltage :

24VDC

Voltage - Rated AC :

250V

Coil Voltage (DC) :

24V

HTS Code :

8536.69.40.40

Approval Agency :

UL

Termination :

Screw

Contact Form :

SPDT (1 Form C)

Current Rating :

6A

Operating Temperature :

-25°C~60°C

Power Consumption :

140W

Max Voltage Rating (DC) :

250V

Series :

PLC-RSP

Voltage - Rated DC :

250V

Switching Voltage :

250VAC 250VDC -Max

Max Current Rating :

6A

Max Input Voltage :

24V

Pbfree Code :

yes

Weight :

28.431g

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reference Standard :

UL

Throw Configuration :

SPDT, SPST

Mounting Type :

DIN Rail

Factory Lead Time :

5 Weeks

Length :

80mm

Release Time :

8ms

Packaging :

Bulk

Input Current :

9mA

Coil Resistance :

2.67kOhm

Relay Action :

Momentary

Contact Material :

Silver Tin Oxide (AgSnO)

Coil Voltage (AC) :

24V

Package / Case :

Module

Relay Type :

GENERAL PURPOSE

Depth :

6.2mm

RoHS Status :

RoHS Compliant

Height :

80mm

REACH SVHC :

No SVHC

Max Voltage Rating (AC) :

250V

Lead Free :

Lead Free

ECCN Code :

EAR99

Mount :

DIN Rail

Operate Time :

5ms

Published :

2008

Resistance :

2.67kOhm

Additional Feature :

CONSIDERED ONLY RELAY DIMENTIONS
