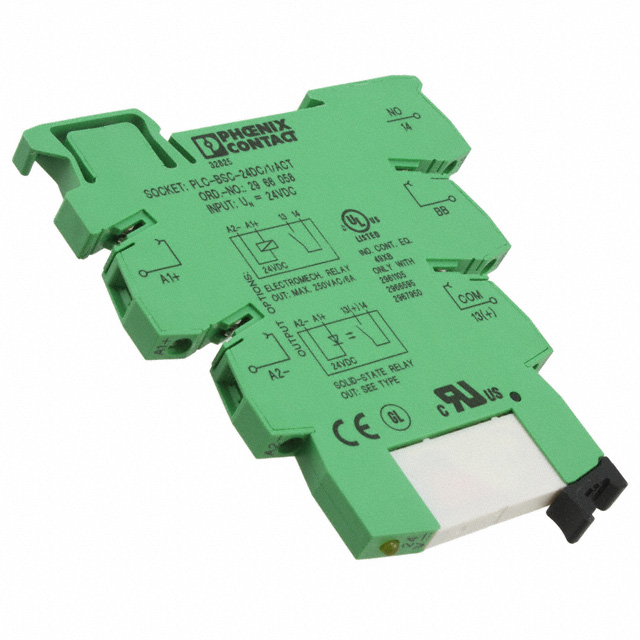

2966210

Manufacturer :

Phoenix Contact

Product Category :

Power Relays, Over 2 Amps

Max Input Voltage :

24V

Approval Agency :

UL

Max Operating Temperature :

60°C

Series :

PLC-RSC

Factory Lead Time :

7 Weeks

Power Consumption :

140W

Current Rating :

6A

Termination Style :

Screw Terminal

Coil Type :

Non Latching

Contact Form :

SPST-NO (1 Form A)

Termination :

Screw

REACH SVHC :

No SVHC

Coil Voltage (DC) :

24V

Mounting Type :

DIN Rail

Coil Voltage (AC) :

24V

Turn On Delay Time :

5 ms

Coil Resistance :

2.6kohm

Number of Poles :

1

Relay Type :

GENERAL PURPOSE

Operate Time :

5ms

Voltage - Rated DC :

250V

Input Current :

9mA

Package / Case :

Module

Release Time :

8ms

Switching Voltage :

250VAC 250VDC -Max

Packaging :

Bulk

Length :

80mm

Operating Temperature :

-25°C~60°C

Width :

6.2mm

Coil Current :

9mA

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height :

80mm

RoHS Status :

RoHS Compliant

Contact Rating (Current) :

6A

Contact Material :

Silver Tin Oxide (AgSnO)

Weight :

33.479993g

Mount :

Chassis, DIN Rail

Max Voltage Rating (DC) :

250V

Max Voltage Rating (AC) :

250V

Depth :

6.2mm

Published :

2008

Max Current Rating :

6A

Turn-Off Delay Time :

8 ms

Throw Configuration :

SPST

Feature :

Lighted Indicator, Socket Included

Coil Voltage :

24VDC

Min Operating Temperature :

-25°C

Voltage - Rated AC :

250V
