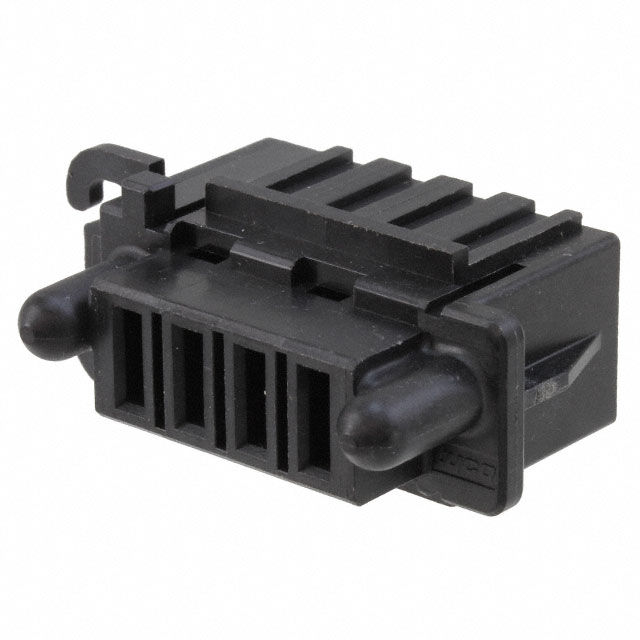

292499-4
Or copy the link below:
- Mfr.Part #
- 292499-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG MULTI-BEAM 4POS
- Stock
- 958
- In Stock ：
- 958
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Backplane Connector Housings
- Reliability :
- COMMERCIAL
- Durability :
- 250 Cycles
- Dielectric Withstanding Voltage :
- 2500VDC V
- Contact Resistance :
- 20mOhm
- Series :
- MULTI-BEAM XL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- DIN Conformance :
- No
- Contact Style :
- BLADE PIN-SKT
- Min Operating Temperature :
- -20°C
- Max Operating Temperature :
- 105°C
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 8 Weeks
- Option :
- GENERAL PURPOSE
- Number of Conductors :
- ONE
- Reference Standard :
- UL
- Pbfree Code :
- yes
- Feature :
- Guide Pin and Lock
- Housing Material :
- Thermoplastic
- Number of Contacts :
- 4
- Pitch :
- 0.118 3.00mm
- Mount :
- Panel
- RoHS Status :
- RoHS Compliant
- Contact Plating :
- Gold
- Housing Color :
- Black
- ELV :
- Compliant
- Sealable :
- No
- Insulation Resistance :
- 500000000Ohm
- Operating Supply Voltage :
- 200V
- Packaging :
- Bulk
- Note :
- Contacts Not Included
- Published :
- 2009
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Retention :
- Without
- MIL Conformance :
- No
- Connector Style :
- Multi-Beam
- Mixed Contacts :
- No
- Mounting Type :
- Panel Mount
- Filter Feature :
- No
- Number of Positions :
- 4 (Power)
- IEC Conformance :
- No
- Number of Rows :
- 1
- Connector Type :
- Housing for Female Blade Sockets
- Connector Usage :
- Receptacle
- Datasheets
- 292499-4
292499-4 datasheet pdf and Backplane Connectors - Housings product details from TE Connectivity AMP Connectors stock available at Xinshop
