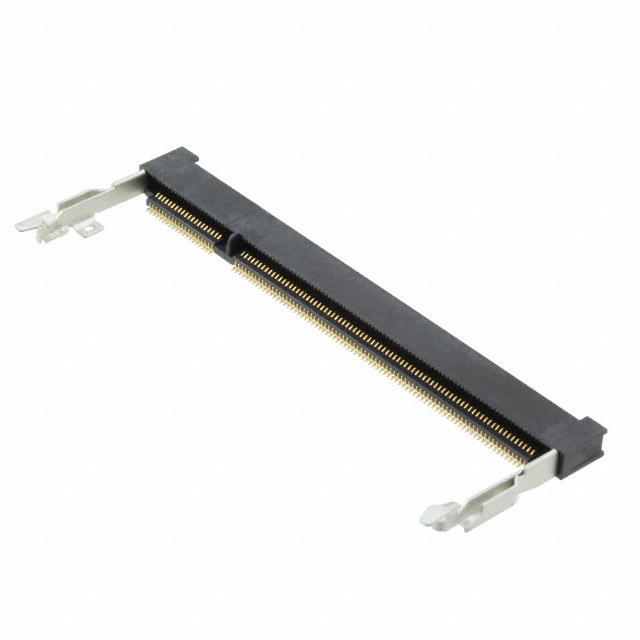

292407-4

Share

Or copy the link below:

Mfr.Part #
292407-4
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN SKT SODIMM 200POS R/A SMD
Stock
43,185
In Stock :
43,185

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Inline Module Sockets
Flammability Rating :
UL94 V-0
Polarization Key :
POLARIZED HOUSING
Voltage - Rated :
1.8V
Housing Color :
Black
MIL Conformance :
No
Body/Shell Style :
Socket
Row Spacing :
5.7912 mm
Mounting Feature :
Reverse
Contact Finish Thickness :
Flash
Number of Conductors :
ONE
Mixed Contacts :
No
Feature :
Board Guide, Latches
Termination :
Solder
Pbfree Code :
yes
Packaging :
Cut Tape (CT)
Factory Lead Time :
14 Weeks
Mount :
Surface Mount
Number Of PCB Rows :
2
UL Flammability Code :
94V-0
Contact Gender :
FEMALE
Stack Height :
3.9878mm
Total Number of Contacts :
200
Number of Positions :
200
Length :
71.5mm
RoHS Status :
RoHS Compliant
Depth :
26.55mm
Reliability :
COMMERCIAL
JESD-609 Code :
e4
Contact Current Rating :
500mA
Pitch :
600μm
Reference Standard :
UL
Contact Style :
BELLOWED TYPE
Mounting Type :
Surface Mount, Right Angle
Housing Material :
Thermoplastic
DIN Conformance :
No
Number of Rows :
2
IEC Conformance :
No
Additional Feature :
POLARIZED
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
PCB Contact Pattern :
RECTANGULAR
Option :
GENERAL PURPOSE
Rated Current (Signal) :
0.5A
Connector Style :
SODIMM
Body Breadth :
0.157 inch
Orientation :
RIGHT ANGLE
Max Operating Temperature :
185°C
Memory Type :
DDR2 SDRAM
Contact Resistance :
30mOhm
Max Current Rating :
500mA
Contact Finish :
Gold
Sealable :
No
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Published :
2010
Insulation Resistance :
250mOhm
Circuit Application :
Power
Min Operating Temperature :
-67°C
Filter Feature :
No
Datasheets
292407-4
Introducing Inline Module Sockets TE Connectivity AMP Connectors 292407-4 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, Right Angle, 292407-4 pinout, 292407-4 datasheet PDF, 292407-4 amp .Beyond Inline Module Sockets TE Connectivity AMP Connectors 292407-4 ,we also offer 1565917-4, MM80-204B1-1R, 1473005-4, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 292407-4


292407-4 datasheet pdf and Memory Connectors - Inline Module Sockets product details from TE Connectivity AMP Connectors stock available at Xinshop
