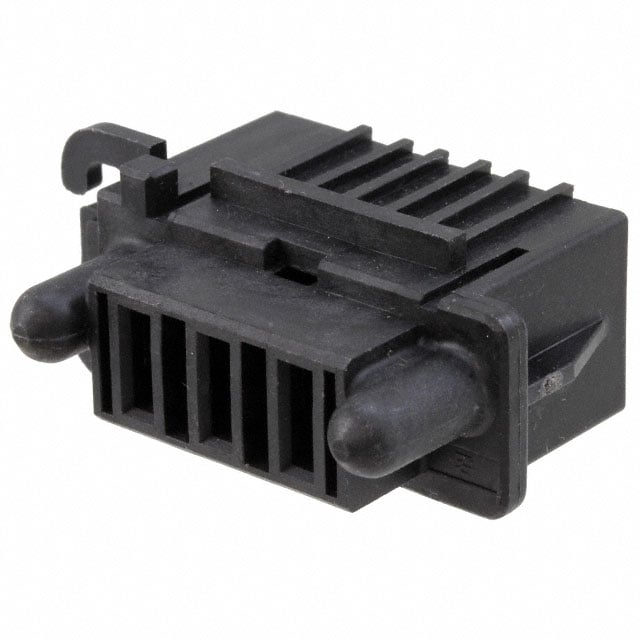

292499-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Backplane Connector Housings

Mixed Contacts :

No

Published :

2009

Option :

GENERAL PURPOSE

Insulation Resistance :

500000000Ohm

Contact Retention :

Without

Body Breadth :

0.846 inch

Dielectric Withstanding Voltage :

2500VDC V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Sealable :

No

Factory Lead Time :

10 Weeks

Housing Material :

Thermoplastic

Number of Positions :

3 (Power)

Total Number of Contacts :

3

Max Voltage Rating (AC) :

300V

Length :

46.73mm

Contact Plating :

Gold

Mounting Type :

Panel Mount

DIN Conformance :

No

Note :

Contacts Not Included

Min Operating Temperature :

-20°C

Filter Feature :

No

Reliability :

COMMERCIAL

Max Operating Temperature :

105°C

Pbfree Code :

yes

Number of Terminations :

3

Durability :

250 Cycles

RoHS Status :

RoHS Compliant

MIL Conformance :

No

Gender :

FEMALE

Connector Usage :

Receptacle

Connector Style :

Multi-Beam

Packaging :

Bulk

IEC Conformance :

No

Feature :

Guide Pin and Lock

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Mount :

Panel

Housing Color :

Black

Contact Style :

BLADE PIN-SKT

Number of Rows :

1

Series :

MULTI-BEAM XL

Termination :

Crimp

Reference Standard :

UL

UL Flammability Code :

94V-0

Connector Type :

Housing for Female Blade Sockets

Contact Resistance :

20mOhm

Operating Supply Voltage :

300V

Number of Conductors :

ONE

ELV :

Compliant

Pitch :

0.118 3.00mm

Flammability Rating :

UL94 V-0

Orientation :

Straight
