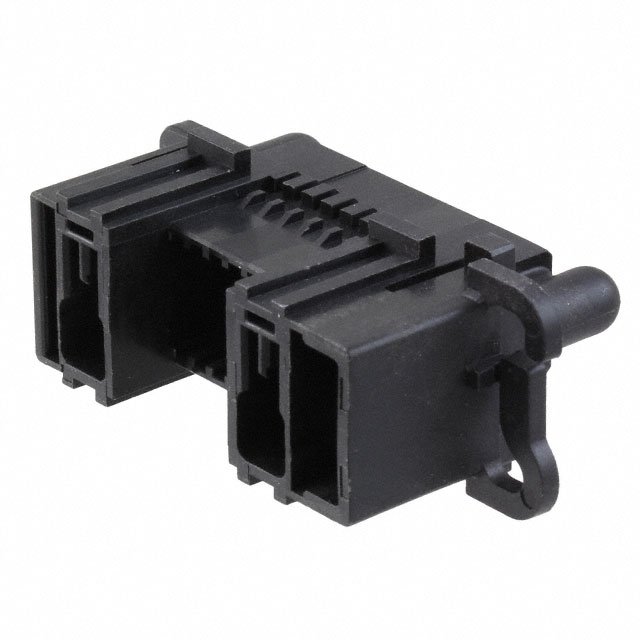

292498-9
Or copy the link below:
- Mfr.Part #
- 292498-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG MULTI-BEAM 26POS
- Stock
- 36,130
- In Stock ：
- 36,130
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Backplane Connector Housings
- Series :
- MULTI-BEAM XL
- Number of Columns :
- 8
- ELV :
- Compliant
- Connector Style :
- Multi-Beam
- Mounting Type :
- Panel Mount
- Sealable :
- No
- Contact Retention :
- Without
- Connector Usage :
- Receptacle
- Feature :
- Guide Pin and Lock
- Number of Rows :
- 4
- Packaging :
- Bulk
- RoHS Status :
- RoHS Compliant
- Number of Contacts :
- 26
- Lead Free :
- Not Applicable
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Supply Voltage :
- 60V
- Housing Color :
- Black
- ECCN Code :
- EAR99
- Orientation :
- Straight
- Housing Material :
- Thermoplastic
- Number of Positions :
- 26 (24 + 2 Power)
- Factory Lead Time :
- 11 Weeks
- Min Operating Temperature :
- -20°C
- Pitch :
- 0.100 2.54mm
- Row Spacing :
- 2.54 mm
- Number of Power Positions :
- 0
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Flammability Rating :
- UL94 V-0
- Mount :
- Panel
- Note :
- Contacts Not Included
- Max Operating Temperature :
- 105°C
- Published :
- 2008
- Connector Type :
- Housing for Female Sockets and Blade Sockets
- Datasheets
- 292498-9
292498-9 datasheet pdf and Backplane Connectors - Housings product details from TE Connectivity AMP Connectors stock available at Xinshop
