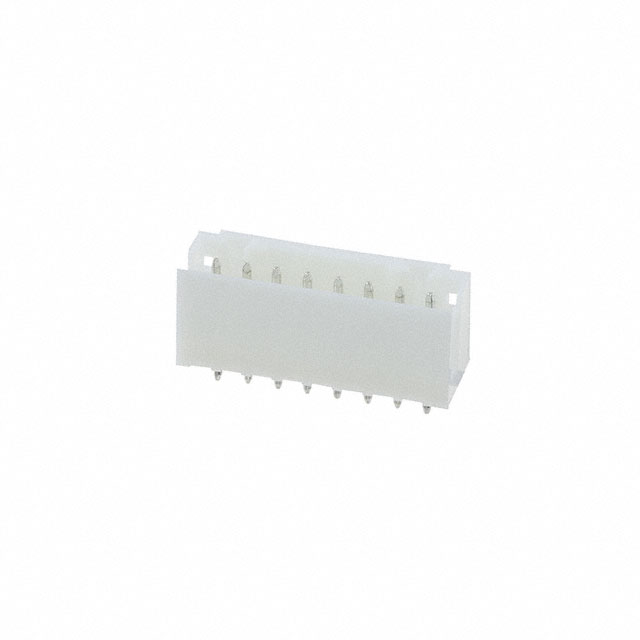

292251-8
Or copy the link below:
- Mfr.Part #
- 292251-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 2MM
- Stock
- 3,818
- In Stock ：
- 3,818
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- MIL Conformance :
- No
- Pbfree Code :
- yes
- PCB Thickness :
- 800μm
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 4 Wall
- Length :
- 17.8mm
- Mixed Contacts :
- No
- Packaging :
- Bulk
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Number of Conductors :
- ONE
- Contact Length - Mating :
- 0.165 4.20mm
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Feature :
- Board Guide
- Mating Post Length :
- 4.2mm
- Mating Retention :
- Without
- Pitch - Mating :
- 0.079 2.00mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Gender :
- Male
- Connector Type :
- Header
- Housing Material :
- Nylon
- Reliability :
- COMMERCIAL
- Applications :
- GENERAL PURPOSE
- Contact Finish - Mating :
- Tin
- Contact Resistance :
- 20mOhm
- Max Operating Temperature :
- 105°C
- ECCN Code :
- EAR99
- Mating Contact Pitch :
- 0.079 inch
- Polarization Key :
- POLARIZED HOUSING
- UL Flammability Code :
- 94V-0
- Contact Current Rating :
- 4A
- Overall Contact Length :
- 0.358 9.09mm
- ELV :
- Compliant
- Insulation Height :
- 0.268 6.80mm
- Lead Free :
- Lead Free
- Factory Lead Time :
- 12 Weeks
- Orientation :
- Vertical
- Contact Length - Post :
- 0.126 3.20mm
- Plating Thickness :
- 40μin
- Contact Material :
- Brass
- Wire/Cable Type :
- Discrete
- Series :
- CT
- Number of Positions :
- 8
- Published :
- 2009
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Shape :
- Circular
- Width :
- 5.8mm
- Reference Standard :
- UL
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Mating :
- 1μm
- DIN Conformance :
- No
- Number of Rows :
- 1
- Height :
- 6.7818mm
- Length - Tail :
- 3.2mm
- Shape :
- RECTANGULAR
- Min Operating Temperature :
- -40°C
- Style :
- Board to Cable/Wire
- Operating Supply Voltage :
- 125V
- IEC Conformance :
- No
- Termination :
- Kinked Pin, Solder
- Fastening Type :
- Detent Lock
- Max Voltage Rating (AC) :
- 125V
- Approval Agency :
- UL
- Flammability Rating :
- UL94 V-0
- Max Voltage Rating (DC) :
- 125V
- Housing Color :
- Natural
- Current Rating :
- 4A
- Number Of PCB Rows :
- 1
- Voltage - Rated :
- 125VAC
- PCB Mount Alignment :
- With
- Wire/Cable Gauge :
- 22 AWG
- Filter Feature :
- No
- Depth :
- 5.8mm
- Sealable :
- No
- Datasheets
- 292251-8
CT Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 8-Position Board to Cable/Wire 0.268 6.80mm Height
292251-8 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the CT Series.Use it below 105°C.A minimum temperature of -40°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose.In many ways, Board Guide makes it more powerful.By Through Hole, the part is mounted.The operating voltage of this memory is 125V.
292251-8 Features
CT series
292251-8 Applications
There are a lot of TE Connectivity AMP Connectors
292251-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
