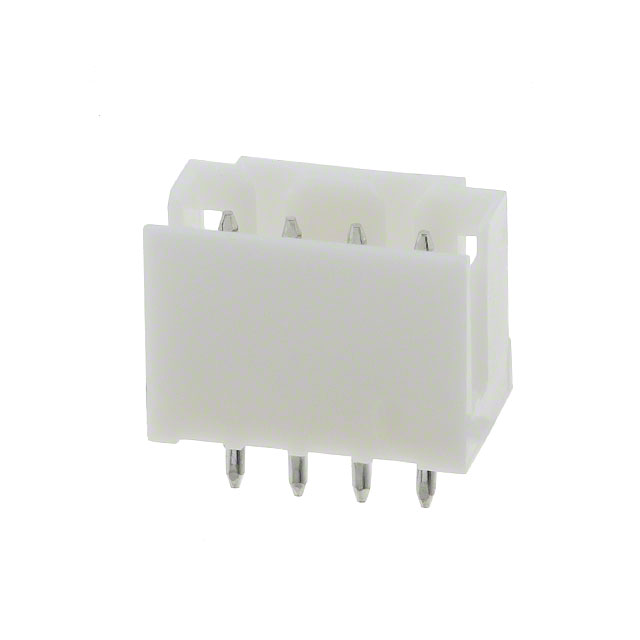

292251-4
Or copy the link below:
- Mfr.Part #
- 292251-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 2MM
- Stock
- 49,136
- In Stock ：
- 49,136
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Mating :
- 1μm
- Approval Agency :
- UL
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.268 6.80mm
- ELV :
- Compliant
- Wire/Cable Type :
- Discrete
- Contact Length - Post :
- 0.126 3.20mm
- Contact Resistance :
- 20mOhm
- Contact Type :
- Male Pin
- Sealable :
- No
- Current Rating :
- 4A
- Contact Gender :
- Male
- Termination :
- Kinked Pin, Solder
- Number of Positions :
- 4
- Length :
- 9.8mm
- Contact Shape :
- Circular
- Wire/Cable Gauge :
- 22 AWG
- Factory Lead Time :
- 12 Weeks
- Number of Positions Loaded :
- All
- Fastening Type :
- Detent Lock
- Connector Type :
- Header
- Mount :
- Through Hole
- Contact Finish - Mating :
- Tin
- Max Voltage Rating (AC) :
- 125V
- Voltage - Rated :
- 125VAC
- Housing Material :
- Nylon
- Orientation :
- Vertical
- Overall Contact Length :
- 0.358 9.09mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Housing Color :
- Natural
- Style :
- Board to Cable/Wire
- Feature :
- Board Guide
- Length - Tail :
- 3.2mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Packaging :
- Bulk
- Min Operating Temperature :
- -40°C
- Contact Current Rating :
- 4A
- Series :
- CT
- Contact Material :
- Brass
- Published :
- 2009
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Operating Temperature :
- 105°C
- Number of Rows :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Pitch - Mating :
- 0.079 2.00mm
- PCB Thickness :
- 800μm
- Operating Supply Voltage :
- 125V
- Height :
- 6.7818mm
- Mating Retention :
- Without
- Width :
- 5.8mm
- Mounting Type :
- Through Hole
- Contact Length - Mating :
- 0.165 4.20mm
- Mating Post Length :
- 4.2mm
- Depth :
- 5.8mm
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Applications :
- GENERAL PURPOSE
- PCB Mount Alignment :
- With
- Shape :
- RECTANGULAR
- ECCN Code :
- EAR99
- Shrouding :
- Shrouded - 4 Wall
- Max Voltage Rating (DC) :
- 125.125kV
- Datasheets
- 292251-4
CT Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 4-Position Board to Cable/Wire 0.268 6.80mm Height
292251-4 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the CT Series of products.Whenever it's below 105°C, it's best to use it.The device must operate at a temperature of -40°C at all times.It is possible for the device to be used for the application General Purpose.A number of features make it more powerful because of its Board Guide feature.Through Hole mounts the part.A voltage of 125V is required to operate this memory.
292251-4 Features
CT series
292251-4 Applications
There are a lot of TE Connectivity AMP Connectors
292251-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
