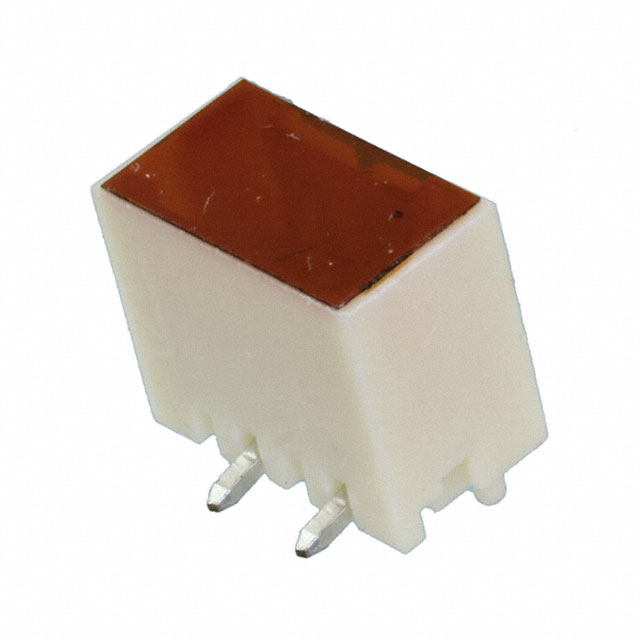

292232-4
Or copy the link below:
- Mfr.Part #
- 292232-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 4POS 1.5MM
- Stock
- 16,618
- In Stock ：
- 16,618
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- MIL Conformance :
- No
- Current Rating :
- 2A
- Total Number of Contacts :
- 4
- Applications :
- GENERAL PURPOSE
- Current Rating (Amps) :
- Varies by WireGAuge
- PCB Contact Pattern :
- STAGGERED
- Contact Type :
- Male Pin
- Contact Material :
- Brass
- Width :
- 4.7mm
- Wire/Cable Gauge :
- 24 AWG
- Material Flammability Rating :
- UL94 V-0
- Mixed Contacts :
- No
- Number Of PCB Rows :
- 2
- Insulation Color :
- Beige
- Series :
- Mini CT
- Connector Type :
- Header
- Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- Dielectric Withstanding Voltage :
- 500VAC V
- IEC Conformance :
- No
- Wire/Cable Type :
- Discrete
- DIN Conformance :
- No
- ELV :
- Compliant
- ECCN Code :
- EAR99
- Plating Thickness :
- 39μin
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Mating :
- 1μm
- Housing Color :
- Beige, Natural
- Packaging :
- Tape and Reel (TR)
- Operating Temperature :
- -30°C~105°C
- Radiation Hardening :
- No
- Published :
- 2004
- Fastening Type :
- Detent Lock
- Housing Material :
- Nylon
- Mating Post Length :
- 2.4mm
- Body Depth :
- 0.272 inch
- Mount :
- Surface Mount
- Contact Length - Mating :
- 0.094 2.40mm
- Shape :
- RECTANGULAR
- Durability :
- 30 Cycles
- Pbfree Code :
- yes
- Operating Supply Voltage :
- 50V
- Style :
- Board to Cable/Wire
- Contact Current Rating :
- 2A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Thickness :
- 787.4μm
- Filter Feature :
- No
- Mounting Type :
- Surface Mount
- RoHS Status :
- RoHS Compliant
- PCB Contact Row Spacing :
- 5.3086 mm
- Contact Shape :
- Square
- Length :
- 8.4836mm
- PCB Mount Retention :
- With
- Approval Agency :
- UL
- Reliability :
- COMMERCIAL
- Factory Lead Time :
- 25 Weeks
- Feature :
- Board Guide, Pick and Place
- Termination :
- Solder
- Number of Positions :
- 4
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Finish - Mating :
- Tin
- Height :
- 6.9088mm
- Pitch - Mating :
- 0.059 1.50mm
- Mating Contact Pitch :
- 0.059 inch
- Polarization Key :
- POLARIZED HOUSING
- Number of Rows :
- 1
- Number of Conductors :
- ONE
- Voltage - Rated :
- 50VAC
- Insulation Diameter :
- 1.0414 mm
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Insulation Height :
- 0.272 6.91mm
- Orientation :
- Vertical
- Contact Gender :
- Male
- Datasheets
- 292232-4
Mini CT Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon, Glass Filled 4-Position Board to Cable/Wire 0.272 6.91mm Height
292232-4 Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount.A Tape & Reel (TR) case is used to package the product.A product of the Mini CT Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose.A number of features make the Board Guide, Pick and Place feature more powerful.Surface Mount represents the mounting point for the part.You're going to need 50V to power this memory.-30°C~105°C Operating Temperature is the default operating temperature for the device.
292232-4 Features
Mini CT series
292232-4 Applications
There are a lot of TE Connectivity AMP Connectors
292232-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
