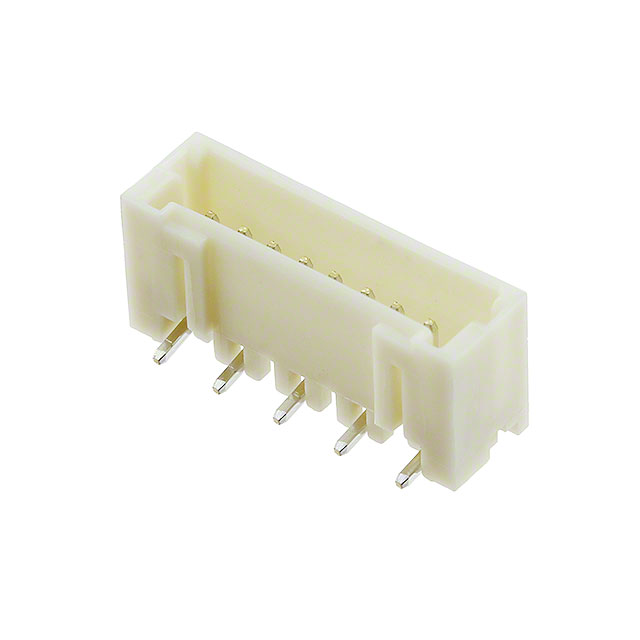

292231-9

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Color :

Beige

Option :

GENERAL PURPOSE

PCB Mounting Orientation :

Vertical

Operating Supply Voltage :

50V

Approval Agency :

CSA

Width :

4.7mm

PCB Contact Pattern :

STAGGERED

RoHS Status :

Non-RoHS Compliant

Connector Type :

Header, Pin

Number of Contacts :

9

Contact Material :

Brass

Body/Shell Style :

PLUG

Contact Finish Thickness - Mating :

1μm

Height :

6.9088mm

PCB Mount Alignment :

Without

Pitch :

1.5mm

Contact Rating (Current) :

2A

Housing Material :

Nylon

IEC Conformance :

No

Number of Conductors :

ONE

Sealable :

No

Flammability Rating :

UL94 V-0

Mount :

Surface Mount

ELV :

Compliant

Durability :

30 Cycles

DIN Conformance :

No

Length :

15.99946mm

Contact Shape :

Square

Filter Feature :

No

Contact Plating :

Tin

MIL Conformance :

No

Shape :

RECTANGULAR

Number of Rows :

1

Max Operating Temperature :

221°C

Pbfree Code :

yes

Rated Current (Signal) :

2A

Mixed Contacts :

No

Wire/Cable Type :

Discrete

Reliability :

COMMERCIAL

Current Rating :

2A

Contact Gender :

Male

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

PCB Thickness :

787.4μm

Number Of PCB Rows :

2

Polarization Key :

POLARIZED HOUSING

Insulation Diameter :

1.0414 mm

Mating Post Length :

2.4mm

Min Operating Temperature :

-22°C

Housing Color :

Natural

Termination :

SMD/SMT

Wire/Cable Gauge :

24 AWG

Body Depth :

0.272 inch

Contact Style :

SQ PIN-SKT

Mating Retention :

With

PCB Contact Row Spacing :

5.3086 mm

Dielectric Withstanding Voltage :

500VAC V
