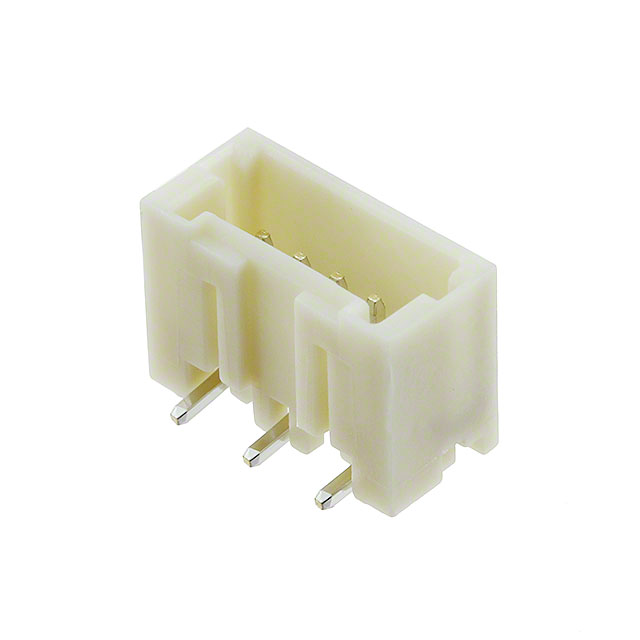

292231-5
Or copy the link below:
- Mfr.Part #
- 292231-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 5POS 1.5MM
- Stock
- 67
- In Stock ：
- 67
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Diameter :
- 1.0414 mm
- Approval Agency :
- UL
- PCB Contact Pattern :
- STAGGERED
- Packaging :
- Tape and Reel (TR)
- Width :
- 4.7mm
- Termination :
- Solder
- Number of Conductors :
- ONE
- Contact Material :
- Brass
- Number of Rows :
- 1
- Flammability Rating :
- UL94 V-0
- UL Flammability Code :
- 94V-0
- Shrouding :
- Shrouded - 4 Wall
- Contact Type :
- Male Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- GENERAL PURPOSE
- Body Depth :
- 0.272 inch
- Material Flammability Rating :
- UL94 V-0
- Filter Feature :
- No
- PCB Thickness :
- 787.4μm
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Style :
- Board to Cable/Wire
- Plating Thickness :
- 39μin
- IEC Conformance :
- No
- Fastening Type :
- Detent Lock
- Connector Type :
- Header
- Current Rating (Amps) :
- Varies by WireGAuge
- Wire/Cable Gauge :
- 24 AWG
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- RoHS Status :
- RoHS Compliant
- Mount :
- Surface Mount
- Published :
- 2004
- Contact Current Rating :
- 2A
- Insulation Height :
- 0.272 6.91mm
- Series :
- Mini CT
- Current Rating :
- 2A
- MIL Conformance :
- No
- Reliability :
- COMMERCIAL
- Mating Retention :
- With
- Number Of PCB Rows :
- 2
- Number of Positions :
- 5
- Mounting Type :
- Surface Mount
- Operating Supply Voltage :
- 50V
- Wire/Cable Type :
- Discrete
- Contact Shape :
- Square
- PCB Mount Alignment :
- Without
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Mating Post Length :
- 2.4mm
- Pbfree Code :
- yes
- Shape :
- RECTANGULAR
- Housing Color :
- Natural
- Number of Positions Loaded :
- All
- Durability :
- 30 Cycles
- Contact Finish - Mating :
- Tin
- ELV :
- Compliant
- Contact Finish Thickness - Mating :
- 1μm
- Contact Length - Mating :
- 0.094 2.40mm
- Polarization Key :
- POLARIZED HOUSING
- Gender :
- Male
- Orientation :
- Vertical
- Housing Material :
- Nylon
- Insulation Color :
- Beige
- Height :
- 6.9088mm
- Pitch - Mating :
- 0.059 1.50mm
- Sealable :
- No
- Operating Temperature :
- -30°C~105°C
- Length :
- 10mm
- Total Number of Contacts :
- 5
- Factory Lead Time :
- 25 Weeks
- Voltage - Rated :
- 50VAC
- Datasheets
- 292231-5
Mini CT Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon, Glass Filled 5-Position Board to Cable/Wire 0.272 6.91mm Height
292231-5 Overview
The product comes in a package of Header.Surface Mount is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the Mini CT Series.The device may be used for the following applications: General Purpose.It is mounted by Surface Mount.Its operating supply voltage is 50V.It operates at an operating temperature of -30°C~105°C.
