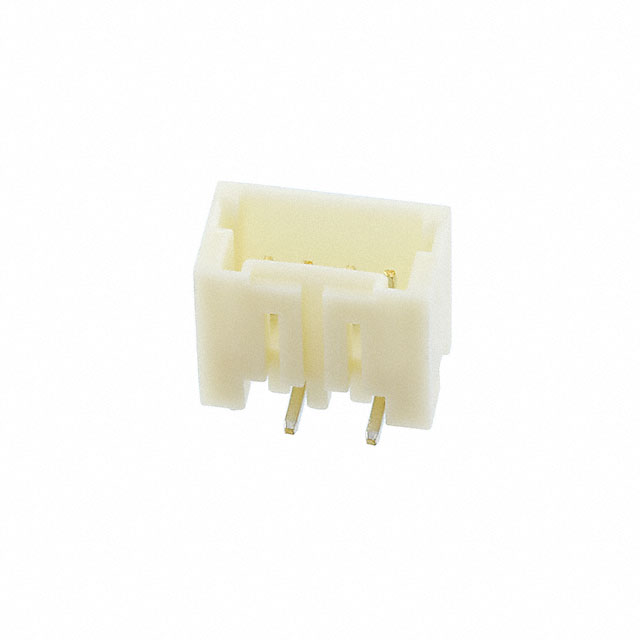

292231-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Sealable :

No

Mating Contact Pitch :

0.059 inch

Operating Temperature :

-30°C~105°C

Contact Current Rating :

2A

Applications :

GENERAL PURPOSE

Polarization Key :

POLARIZED HOUSING

Material Flammability Rating :

UL94 V-0

Plating Thickness :

39μin

Number of Conductors :

ONE

Shrouding :

Shrouded - 4 Wall

Mating Retention :

With

Max Voltage Rating (AC) :

50V

Number of Positions :

4

Flammability Rating :

UL94 V-0

Total Number of Contacts :

4

Length :

8.4836mm

Insulation Diameter :

1.0414 mm

Number Of PCB Rows :

2

Contact Type :

Male Pin

Wire/Cable Type :

Discrete

Termination :

Solder

Height :

6.9088mm

IEC Conformance :

No

Contact Finish - Mating :

Tin

MIL Conformance :

No

Insulation Height :

0.272 6.91mm

Filter Feature :

No

PCB Thickness :

787.4μm

PCB Mount Alignment :

Without

Pbfree Code :

yes

PCB Contact Row Spacing :

5.3086 mm

Mounting Type :

Surface Mount

Operating Supply Voltage :

50V

ELV :

Compliant

Reliability :

COMMERCIAL

Contact Finish Thickness - Mating :

1μm

Contact Shape :

Square

Housing Material :

Nylon

Number of Rows :

1

Orientation :

Vertical

Connector Type :

Header

Contact Material :

Brass

Approval Agency :

CSA

RoHS Status :

RoHS Compliant

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Number of Positions Loaded :

All

DIN Conformance :

No

Mount :

Surface Mount

Wire/Cable Gauge :

24 AWG

Shape :

RECTANGULAR

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Contact Resistance :

30mOhm

Current Rating (Amps) :

Varies by WireGAuge

Voltage - Rated :

50VAC

Housing Color :

Natural

Factory Lead Time :

3 Weeks

Contact Length - Mating :

0.094 2.40mm

Width :

4.7mm

Current Rating :

2A

Mating Post Length :

2.4mm

Depth :

4.7mm

Series :

Mini CT

PCB Contact Pattern :

STAGGERED

Published :

2004

Durability :

30 Cycles

Style :

Board to Cable/Wire

Packaging :

Cut Tape (CT)

Pitch - Mating :

0.059 1.50mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Dielectric Withstanding Voltage :

500VAC V

Insulation Color :

Beige

Fastening Type :

Detent Lock

Mixed Contacts :

No
