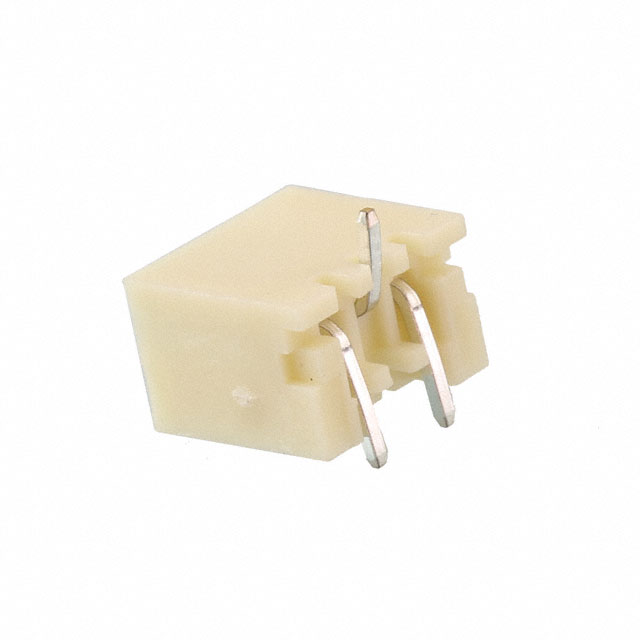

292231-3
Or copy the link below:
- Mfr.Part #
- 292231-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 3POS 1.5MM
- Stock
- 2,500
- In Stock ：
- 2,500
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mating Post Length :
- 2.4mm
- Polarization Key :
- POLARIZED HOUSING
- Mixed Contacts :
- No
- Contact Finish Thickness - Mating :
- 1μm
- Contact Current Rating :
- 2A
- Flammability Rating :
- UL94 V-0
- ECCN Code :
- EAR99
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Mount :
- Surface Mount
- Contact Finish - Mating :
- Tin
- Number of Conductors :
- ONE
- Sealable :
- No
- Pbfree Code :
- yes
- Contact Type :
- Male Pin
- Housing Color :
- Natural
- MIL Conformance :
- No
- ELV :
- Compliant
- Mounting Type :
- Surface Mount
- Dielectric Withstanding Voltage :
- 500VAC V
- Voltage - Rated :
- 50VAC
- Number of Positions Loaded :
- All
- Total Number of Contacts :
- 3
- Insulation Height :
- 0.272 6.91mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire/Cable Type :
- Discrete
- PCB Contact Pattern :
- STAGGERED
- Pitch - Mating :
- 0.059 1.50mm
- Shrouding :
- Shrouded - 4 Wall
- Wire/Cable Gauge :
- 24 AWG
- Insulation Color :
- Beige
- IEC Conformance :
- No
- Mating Contact Pitch :
- 0.059 inch
- Current Rating (Amps) :
- Varies by WireGAuge
- Approval Agency :
- UL
- Orientation :
- Vertical
- Series :
- Mini CT
- Contact Shape :
- Square
- Published :
- 2004
- Applications :
- GENERAL PURPOSE
- Current Rating :
- 2A
- UL Flammability Code :
- 94V-0
- DIN Conformance :
- No
- Insulation Diameter :
- 1.0414 mm
- Housing Material :
- Nylon
- Mating Retention :
- With
- Connector Type :
- Header
- Number Of PCB Rows :
- 2
- Factory Lead Time :
- 22 Weeks
- Number of Positions :
- 3
- Contact Material :
- Brass
- Length :
- 7.00024mm
- Body Depth :
- 0.272 inch
- Gender :
- Male
- Packaging :
- Tape and Reel (TR)
- Fastening Type :
- Detent Lock
- Filter Feature :
- No
- Contact Length - Mating :
- 0.094 2.40mm
- Shape :
- RECTANGULAR
- RoHS Status :
- RoHS Compliant
- Width :
- 4.7mm
- Style :
- Board to Cable/Wire
- Operating Temperature :
- -30°C~105°C
- Height :
- 6.9088mm
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- PCB Mount Alignment :
- Without
- Material Flammability Rating :
- UL94 V-0
- Reliability :
- COMMERCIAL
- Termination :
- Solder
- PCB Thickness :
- 787.4μm
- Operating Supply Voltage :
- 50V
- Number of Rows :
- 1
- Datasheets
- 292231-3
Mini CT Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon, Glass Filled 3-Position Board to Cable/Wire 0.272 6.91mm Height
292231-3 Overview
Packaging is Header.Surface Mount is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the Mini CT Series, it can be found in this category.A possible application of the device would be General Purpose.In this case, Surface Mount mounts the part.The memory's operating supply voltage is 50V.The device is operating at -30°C~105°C Operating Temperature.
292231-3 Features
Mini CT series
292231-3 Applications
There are a lot of TE Connectivity AMP Connectors
292231-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
