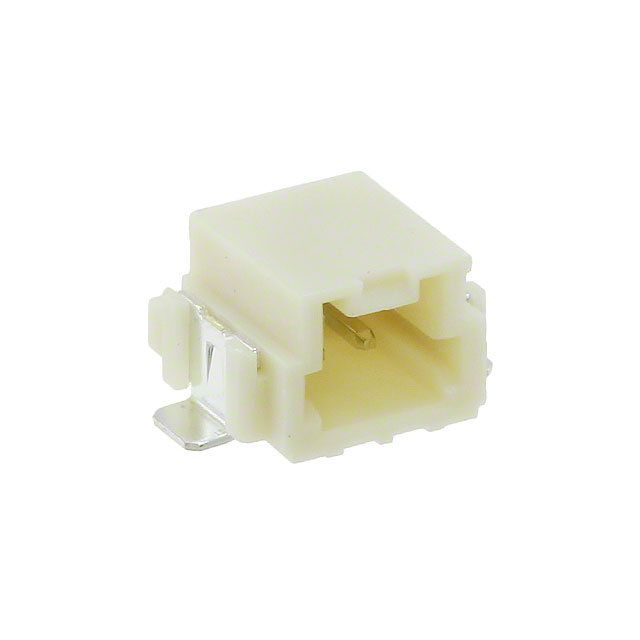

292227-2
Or copy the link below:
- Mfr.Part #
- 292227-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 2POS 1.5MM
- Stock
- 32,544
- In Stock ：
- 32,544
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.059 1.50mm
- Mounting Type :
- Surface Mount, Right Angle
- DIN Conformance :
- No
- UL Flammability Code :
- 94V-0
- IEC Conformance :
- No
- Wire/Cable Type :
- Discrete
- Number of Positions :
- 2
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -30°C~105°C
- Filter Feature :
- No
- Connector Type :
- Header
- Series :
- Mini CT
- Applications :
- GENERAL PURPOSE
- Pbfree Code :
- yes
- Total Number of Contacts :
- 2
- Published :
- 2004
- Max Voltage Rating (DC) :
- 50V
- MIL Conformance :
- No
- Height :
- 7.7mm
- Shrouding :
- Shrouded - 4 Wall
- Wire/Cable Gauge :
- 24 AWG
- Contact Current Rating :
- 2A
- PCB Mounting Orientation :
- RIGHT ANGLE
- Factory Lead Time :
- 25 Weeks
- Sealable :
- No
- Housing Material :
- Nylon
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Contact Finish - Mating :
- Tin
- Mixed Contacts :
- No
- Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- 0.094 2.40mm
- Voltage - Rated :
- 50VAC
- PCB Thickness :
- 787.4μm
- Depth :
- 7.7mm
- Contact Type :
- Male Pin
- Mount :
- Surface Mount
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.193 4.90mm
- Insulation Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled
- Packaging :
- Tape and Reel (TR)
- Orientation :
- RIGHT ANGLE
- Termination :
- Solder
- Contact Gender :
- Male
- Max Voltage Rating (AC) :
- 50V
- Insulation Diameter :
- 1.0414 mm
- Shape :
- RECTANGULAR
- Width :
- 4.8768mm
- Feature :
- Board Guide, Solder Retention
- Approval Agency :
- CSA
- Length :
- 7.5mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Insulation Color :
- Beige
- Contact Resistance :
- 30mOhm
- Current Rating :
- 2A
- Fastening Type :
- Detent Lock
- Operating Supply Voltage :
- 50V
- Mating Post Length :
- 2.4mm
- Number of Rows :
- 1
- RoHS Status :
- RoHS Compliant
- Current Rating (Amps) :
- Varies by WireGAuge
- PCB Mount Retention :
- With
- REACH SVHC :
- Unknown
- Housing Color :
- Natural
- Contact Material :
- Brass
- Contact Finish Thickness - Mating :
- 1μm
- Number of Positions Loaded :
- All
- Datasheets
- 292227-2
Mini CT Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA6T), Nylon 6T, Glass Filled 2-Position Board to Cable/Wire 0.193 4.90mm Height
292227-2 Overview
This product is packaged in a Header box.Surface Mount, Right Angle indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the Mini CT Series.There is the possibility of using the device for General Purpose.In many ways, Board Guide, Solder Retention makes it more powerful.By Surface Mount, the part is mounted.The operating voltage of this memory is 50V.Operating temperature is set to -30°C~105°C.
292227-2 Features
Mini CT series
292227-2 Applications
There are a lot of TE Connectivity AMP Connectors
292227-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
