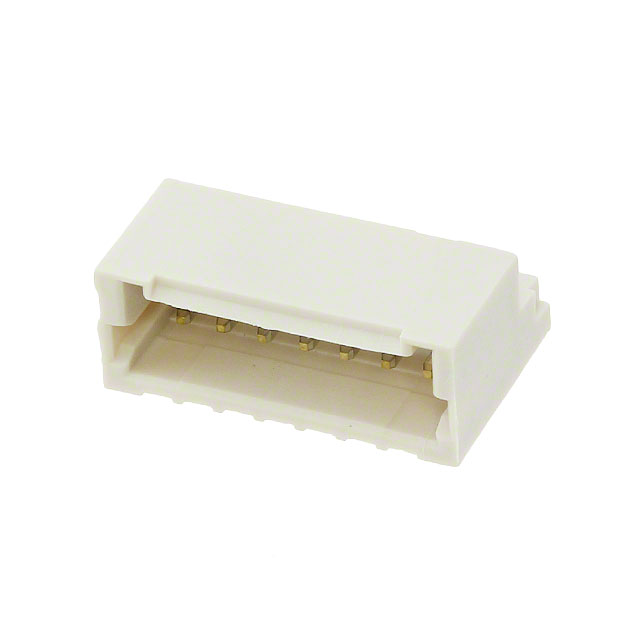

292206-7
Or copy the link below:
- Mfr.Part #
- 292206-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 7POS 1.5MM
- Stock
- 576
- In Stock ：
- 576
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Height :
- 0.193 4.90mm
- PCB Thickness :
- 1.6002mm
- Fastening Type :
- Detent Lock
- Pitch :
- 1.5mm
- Length :
- 12.9794mm
- Housing Color :
- Natural
- PCB Mount Retention :
- With
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Gender :
- Male
- Contact Current Rating :
- 2A
- Number of Rows :
- 1
- Mounting Type :
- Through Hole, Right Angle
- Approval Agency :
- CSA
- Wire/Cable Gauge :
- 22 AWG
- Contact Length - Post :
- 0.118 3.00mm
- Max Voltage Rating (DC) :
- 5.05kV
- Shape :
- RECTANGULAR
- Mating Retention :
- With
- Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- RoHS Status :
- RoHS Compliant
- Max Voltage Rating (AC) :
- 50V
- Number of Contacts :
- 7
- Pitch - Mating :
- 0.059 1.50mm
- Operating Temperature :
- -30°C~105°C
- Contact Finish - Mating :
- Tin
- Contact Shape :
- Square
- Plating :
- Tin
- Contact Length - Mating :
- 0.094 2.40mm
- Sealable :
- No
- Shrouding :
- Shrouded - 4 Wall
- Plating Thickness :
- 2μm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- PCB Mount Alignment :
- With
- Contact Finish Thickness - Mating :
- 1μm
- Series :
- Mini CT
- Mating Post Length :
- 2.4mm
- Depth :
- 8.45mm
- Packaging :
- Bulk
- Height :
- 8.4328mm
- Contact Resistance :
- 30mOhm
- Length - Tail :
- 3mm
- Housing Material :
- Nylon
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 7
- Insulation Diameter :
- 1.0414 mm
- Width :
- 4.8768mm
- Color :
- Grey
- Wire/Cable Type :
- Discrete
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Published :
- 2004
- Contact Finish - Post :
- Tin
- Termination :
- Kinked Pin, Solder
- Current Rating :
- 2A
- Radiation Hardening :
- No
- Max Operating Temperature :
- 221°C
- Factory Lead Time :
- 25 Weeks
- Insulation Color :
- Gray
- ELV :
- Compliant
- Orientation :
- RIGHT ANGLE
- Min Operating Temperature :
- -22°C
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Supply Voltage :
- 50V
- Contact Plating :
- Tin
- Gender :
- Male
- Contact Material :
- Brass
- Style :
- Board to Cable/Wire
- Voltage - Rated :
- 50VAC
- Current Rating (Amps) :
- Varies by WireGAuge
- Applications :
- GENERAL PURPOSE
- Datasheets
- 292206-7
Mini CT Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA), Nylon, Glass Filled 7-Position Board to Cable/Wire 0.193 4.90mm Height
292206-7 Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the Mini CT Series of products.It's best to use it when the temperature is below 221°C.This device must operate at a minimum temperature of -22°C.General Purpose is a possible application for the device.The part is mounted by Through Hole.This memory's operating supply voltage is 50V.The device runs in -30°C~105°C Operating Temperature.
