292178-1
Or copy the link below:
- Mfr.Part #
- 292178-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN BLNDMATE MIN-DRAWER 22P PNL
- Stock
- 279
- In Stock ：
- 279
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Current Rating :
- 2A
- Pbfree Code :
- yes
- Feature :
- Board Guide
- Connector Style :
- Mini-Drawer
- Number of Positions :
- 22
- Row Spacing :
- 7.6 mm
- Published :
- 2004
- MIL Conformance :
- No
- Termination :
- Solder
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Factory Lead Time :
- 15 Weeks
- Body/Shell Style :
- JACK
- Mounting Type :
- Panel Mount
- Sealable :
- No
- Polarization Key :
- POLARIZED HOUSING
- Reliability :
- COMMERCIAL
- Number of Positions Loaded :
- All
- Body Breadth :
- 0.591 inch
- IEC Conformance :
- No
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Contact Finish :
- Gold
- Wire Gauge (Min) :
- 30 AWG
- Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire/Cable Gauge :
- 22 AWG
- Contact Current Rating :
- 1A
- Durability :
- 1000 Cycles
- Shape :
- RECTANGULAR
- Mount :
- Panel
- Contact Gender :
- FEMALE
- Operating Temperature :
- -20°C~105°C
- Wire Gauge (Max) :
- 22 AWG
- Pitch :
- 0.079 2.00mm
- ELV :
- Compliant
- Mating Retention :
- Without
- Lead Free :
- Not Applicable
- Operating Supply Voltage :
- 125V
- Connector Type :
- Blindmate, Fixed, Non-Gendered
- Housing Material :
- PBT
- DIN Conformance :
- No
- Insulation Resistance :
- 1000000000Ohm
- Contact Material :
- Bronze
- Option :
- GENERAL PURPOSE
- Rated Current (Signal) :
- 1A
- Body Depth :
- 0.394 inch
- Total Number of Contacts :
- 22
- Reference Standard :
- UL
- Orientation :
- Straight
- Number of Rows :
- 2
- Series :
- Mini CT
- Datasheets
- 292178-1

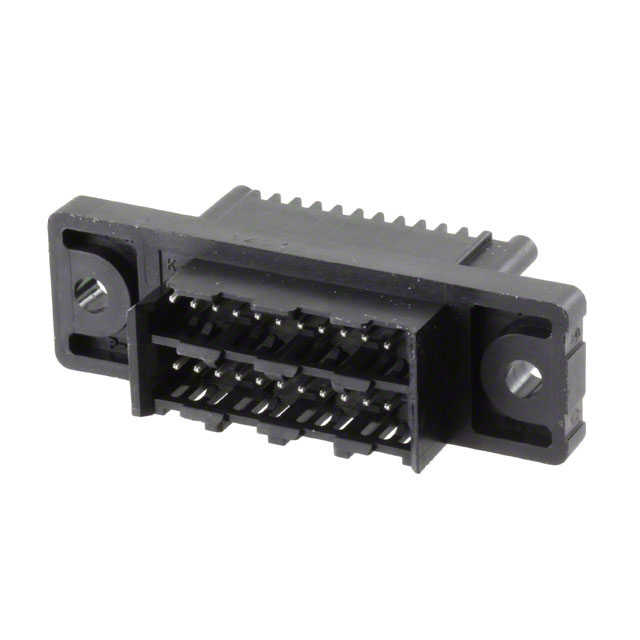

Mini CT Series Blindmate, Fixed, Non-Gendered Solder Gold Black 22 Positions Pitch: 0.079 2.00mm -20°C~105°C Bulk Panel Mount
292178-1 Overview
The product is packaged in Blindmate, Fixed, Non-Gendered.This device is mounted in the Panel Mount position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Mini CT Series.There are a number of advantages to its Board Guide feature.Part Panel is mounted to the part.As a result, the device runs at -20°C~105°C Operating Temperature.A supply voltage of 125V is required to operate this Backplane Connector.
292178-1 Features
Mini CT series
292178-1 Applications
There are a lot of TE Connectivity AMP Connectors
292178-1 Backplane Connectors applications.
