- Mfr.Part #
- 292175-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 9POS 2MM
- Stock
- 3,226
- In Stock ：
- 3,226
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Length - Mating :
- 0.177 4.50mm
- Number of Positions Loaded :
- All
- Feature :
- Solder Retention
- Published :
- 2007
- Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Contact Gender :
- Male
- Current Rating (Amps) :
- Varies by WireGAuge
- Connector Type :
- Header
- Number of Positions :
- 9
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 4 Wall
- Total Number of Contacts :
- 9
- Orientation :
- Vertical
- Housing Color :
- Natural
- Shape :
- RECTANGULAR
- Mating Post Length :
- 4.4958mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- MIL Conformance :
- No
- Contact Material :
- Brass
- Insulation Height :
- 0.307 7.80mm
- PCB Mount Retention :
- With
- Mating Retention :
- Without
- Mounting Type :
- Surface Mount
- Pitch - Mating :
- 0.079 2.00mm
- Wire/Cable Gauge :
- 22 AWG
- Length :
- 19.7993mm
- Min Operating Temperature :
- -40°C
- Material Flammability Rating :
- UL94 V-0
- Plating Thickness :
- 2μm
- Number of Rows :
- 1
- Reliability :
- COMMERCIAL
- IEC Conformance :
- No
- Packaging :
- Tape and Reel (TR)
- Approval Agency :
- UL
- Depth :
- 5.8mm
- RoHS Status :
- RoHS Compliant
- Series :
- CT
- Number Of PCB Rows :
- 1
- Filter Feature :
- No
- Contact Resistance :
- 20mOhm
- DIN Conformance :
- No
- Current Rating :
- 4A
- Terminal Pitch :
- 2mm
- Wire/Cable Type :
- Discrete
- Mixed Contacts :
- No
- Housing Material :
- Polyphenylene
- Sealable :
- No
- Voltage - Rated :
- 125VAC
- Pbfree Code :
- yes
- Mount :
- Surface Mount
- PCB Thickness :
- 800μm
- Insulation Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled
- Style :
- Board to Cable/Wire
- Contact Type :
- Male Pin
- Contact Current Rating :
- 4A
- Operating Supply Voltage :
- 125V
- Number of Conductors :
- ONE
- Applications :
- GENERAL PURPOSE
- Insulation Diameter :
- 930 μm
- Contact Shape :
- Square
- Factory Lead Time :
- 13 Weeks
- Contact Finish - Mating :
- Tin
- Height :
- 7.8mm
- Fastening Type :
- Detent Lock
- Body Breadth :
- 0.228 inch
- Width :
- 5.8mm
- Max Operating Temperature :
- 105°C
- Polarization Key :
- POLARIZED HOUSING
- Datasheets
- 292175-9

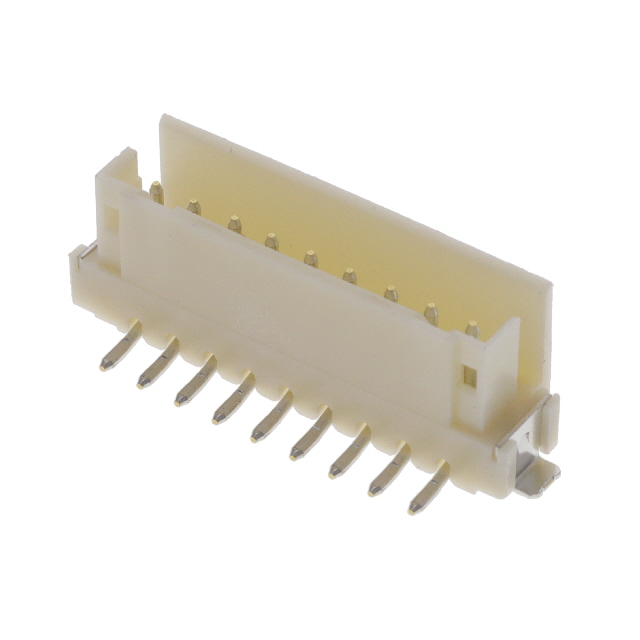

CT Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA6T), Nylon 6T, Glass Filled 9-Position Board to Cable/Wire 0.307 7.80mm Height
292175-9 Overview
Header packaging is included.This device has a mounting type of Surface Mount.We package the product with a Tape & Reel (TR) case.The product is part of the CT Series.If it is to be used, it should be kept at a temperature below 105°C.There must be a minimum temperature of -40°C for this device to operate.You can use it for General Purpose.This feature makes it more powerful in a number of ways due to its Solder Retention feature.You've got Surface Mount mounted on the part.Memory is operating at 125V volts.
292175-9 Features
CT series
292175-9 Applications
There are a lot of TE Connectivity AMP Connectors
292175-9 Rectangular Connectors applications.
