292175-3
Or copy the link below:
- Mfr.Part #
- 292175-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 3POS 2MM
- Stock
- 170
- In Stock ：
- 170
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- PCB Thickness :
- 800μm
- Number of Positions :
- 3
- Max Voltage Rating (AC) :
- 125V
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Number of Rows :
- 1
- Number Of PCB Rows :
- 1
- Termination :
- Solder
- Approval Agency :
- CSA
- ELV :
- Compliant
- Insulation Diameter :
- 930 μm
- Contact Length - Mating :
- 0.177 4.50mm
- Current Rating :
- 4A
- Applications :
- GENERAL PURPOSE
- Mount :
- Surface Mount
- Terminal Pitch :
- 2mm
- Filter Feature :
- No
- Number of Positions Loaded :
- All
- Pitch - Mating :
- 0.079 2.00mm
- Packaging :
- Tape and Reel (TR)
- Length :
- 7.8mm
- Housing Material :
- Polyphenylene
- Body Breadth :
- 0.228 inch
- Reliability :
- COMMERCIAL
- Polarization Key :
- POLARIZED HOUSING
- Contact Resistance :
- 20mOhm
- Style :
- Board to Cable/Wire
- Fastening Type :
- Detent Lock
- Feature :
- Solder Retention
- Published :
- 2010
- Width :
- 5.8mm
- Max Operating Temperature :
- 105°C
- Sealable :
- No
- Mating Contact Pitch :
- 0.079 inch
- Insulation Height :
- 0.307 7.80mm
- Height :
- 7.8mm
- Lead Free :
- Lead Free
- IEC Conformance :
- No
- Mounting Type :
- Surface Mount
- Plating Thickness :
- 2μm
- Operating Supply Voltage :
- 125V
- UL Flammability Code :
- 94V-0
- PCB Mount Retention :
- With
- Contact Current Rating :
- 4A
- Orientation :
- Vertical
- Housing Color :
- Natural
- Contact Finish - Mating :
- Tin
- Min Operating Temperature :
- -40°C
- Mating Post Length :
- 4.4958mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- MIL Conformance :
- No
- Shrouding :
- Shrouded - 4 Wall
- Max Voltage Rating (DC) :
- 125V
- Shape :
- RECTANGULAR
- Voltage - Rated :
- 125VAC
- Series :
- CT
- Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Wire/Cable Type :
- Discrete
- Material Flammability Rating :
- UL94 V-0
- Number of Conductors :
- ONE
- Contact Material :
- Brass
- Mixed Contacts :
- No
- Total Number of Contacts :
- 3
- Contact Gender :
- Male
- Connector Type :
- Header
- Factory Lead Time :
- 14 Weeks
- Insulation Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled
- Current Rating (Amps) :
- Varies by WireGAuge
- DIN Conformance :
- No
- Contact Type :
- Male Pin
- Mating Retention :
- Without
- RoHS Status :
- RoHS Compliant
- Wire/Cable Gauge :
- 22 AWG
- Datasheets
- 292175-3

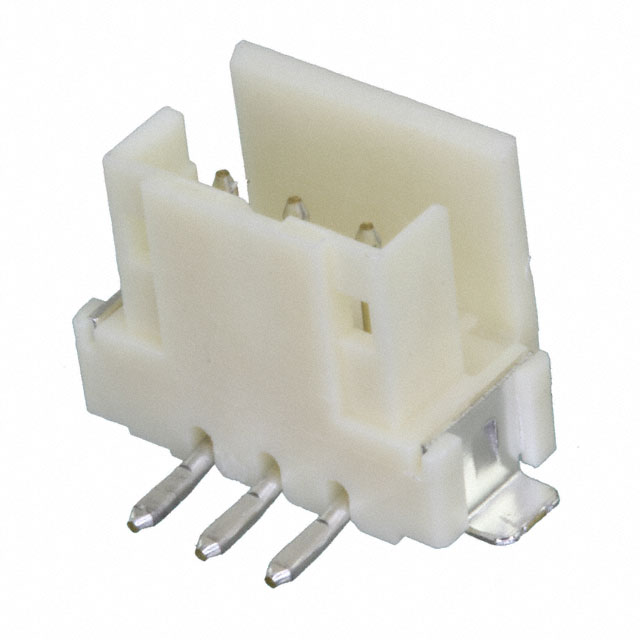

CT Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA6T), Nylon 6T, Glass Filled 3-Position Board to Cable/Wire 0.307 7.80mm Height
292175-3 Overview
Packaging is in the form of Header.This device has a Surface Mount mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the CT Series.If the temperature is below 105°C, it's best to use it.-40°C is the minimum temperature for this device.There are a variety of possible applications for this device, including General Purpose.Several benefits come from the Solder Retention feature.There is a mounting hole at Surface Mount.It runs on 125V voltage.
