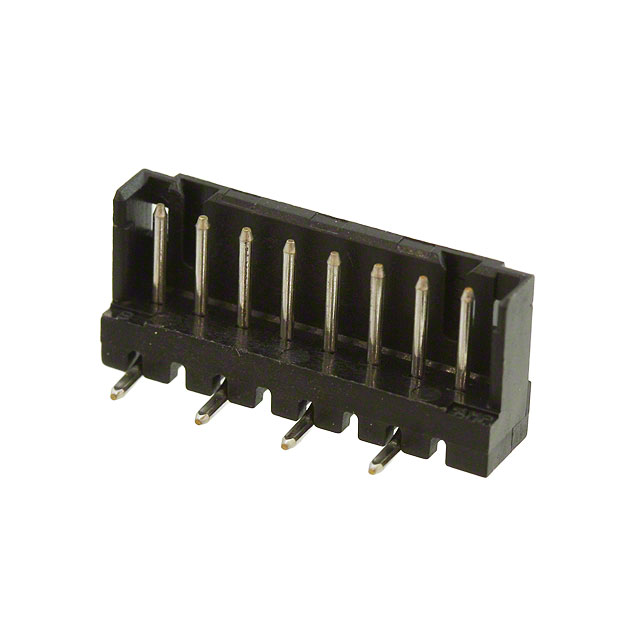

292172-8
Or copy the link below:
- Mfr.Part #
- 292172-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 8POS 2MM
- Stock
- 23,125
- In Stock ：
- 23,125
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- UL Flammability Code :
- 94V-0
- Number of Rows :
- 1
- Mating Contact Pitch :
- 0.079 inch
- Insulator Color :
- Natural
- Contact Resistance :
- 20mOhm
- Series :
- CT
- Contact Length - Mating :
- 0.177 4.50mm
- Shrouding :
- Shrouded - 3 Wall
- Factory Lead Time :
- 23 Weeks
- PCB Mount Retention :
- Without
- Material Flammability Rating :
- UL94 V-0
- Sealable :
- No
- Reliability :
- COMMERCIAL
- Published :
- 2009
- Termination :
- Solder
- Number of Conductors :
- ONE
- Wire/Cable Gauge :
- 22 AWG
- Max Operating Temperature :
- 105°C
- Current Rating :
- 4A
- Shape :
- RECTANGULAR
- Contact Gender :
- Male
- Durability :
- 30 Cycles
- Packaging :
- Tube
- Contact Shape :
- Circular
- Insulation Height :
- 0.307 7.80mm
- IEC Conformance :
- No
- PCB Contact Pattern :
- STAGGERED
- Contact Current Rating :
- 4A
- Filter Feature :
- No
- Contact Material :
- Brass
- Width :
- 3.9878mm
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Terminal Pitch :
- 2mm
- Mating Post Length :
- 4.4958mm
- Length :
- 18.00098mm
- Approval Agency :
- CSA
- Number of Positions Loaded :
- All
- Fastening Type :
- Detent Lock
- ECCN Code :
- EAR99
- Flammability Rating :
- UL94 V-0
- Wire/Cable Type :
- Discrete
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Insulation Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled
- Body Depth :
- 0.307 inch
- Plating Thickness :
- 2μm
- MIL Conformance :
- No
- PCB Thickness :
- 800μm
- Mount :
- Surface Mount
- Pbfree Code :
- yes
- Contact Finish - Mating :
- Tin
- Operating Supply Voltage :
- 125V
- Mounting Type :
- Surface Mount
- Polarization Key :
- POLARIZED HOUSING
- Number Of PCB Rows :
- 2
- Orientation :
- Vertical
- Total Number of Contacts :
- 8
- Housing Color :
- Black
- Voltage - Rated :
- 125VAC
- Min Operating Temperature :
- -40°C
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polyphenylene
- Contact Type :
- Male Pin
- Mixed Contacts :
- No
- Applications :
- GENERAL PURPOSE
- DIN Conformance :
- No
- Height :
- 7.8mm
- Number of Positions :
- 8
- Current Rating (Amps) :
- Varies by WireGAuge
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch - Mating :
- 0.079 2.00mm
- Datasheets
- 292172-8
CT Series 1-Row Header Solder Brass Tube Surface Mount Tin Polyamide (PA6T), Nylon 6T, Glass Filled 8-Position Board to Cable/Wire 0.307 7.80mm Height
292172-8 Overview
This product is packaged in a Header box.Surface Mount indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the CT Series.Use it below 105°C.A minimum temperature of -40°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose.By Surface Mount, the part is mounted.The operating voltage of this memory is 125V.
292172-8 Features
CT series
292172-8 Applications
There are a lot of TE Connectivity AMP Connectors
292172-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
