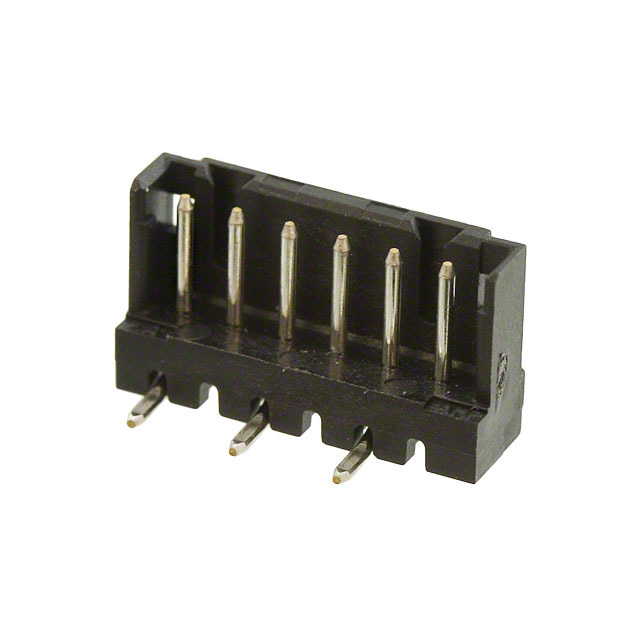

292172-6
Or copy the link below:
- Mfr.Part #
- 292172-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 6POS 2MM
- Stock
- 23,074
- In Stock ：
- 23,074
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number Of PCB Rows :
- 2
- Contact Resistance :
- 20mOhm
- Mating Post Length :
- 4.4958mm
- Insulation Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled
- Operating Supply Voltage :
- 125V
- PCB Mount Retention :
- Without
- Contact Length - Mating :
- 0.177 4.50mm
- Style :
- Board to Cable/Wire
- Published :
- 2009
- Factory Lead Time :
- 16 Weeks
- Wire/Cable Type :
- Discrete
- Max Operating Temperature :
- 105°C
- Packaging :
- Tube
- Max Voltage Rating (DC) :
- 125V
- Housing Material :
- Polyphenylene
- Fastening Type :
- Detent Lock
- Durability :
- 30 Cycles
- Series :
- CT
- Pitch - Mating :
- 0.079 2.00mm
- Max Voltage Rating (AC) :
- 125V
- Housing Color :
- Black
- Voltage - Rated :
- 125VAC
- Width :
- 3.9878mm
- Min Operating Temperature :
- -40°C
- Number of Positions Loaded :
- All
- Plating Thickness :
- 2μm
- ELV :
- Compliant
- Filter Feature :
- No
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Mixed Contacts :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Sealable :
- No
- Number of Conductors :
- ONE
- Reliability :
- COMMERCIAL
- UL Flammability Code :
- 94V-0
- Depth :
- 7.8mm
- Number of Positions :
- 6
- PCB Contact Pattern :
- STAGGERED
- Mount :
- Surface Mount
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Gender :
- Male
- Number of Rows :
- 1
- Current Rating :
- 4A
- Terminal Pitch :
- 2mm
- Connector Type :
- Header
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Circular
- Shrouding :
- Shrouded - 3 Wall
- MIL Conformance :
- No
- Length :
- 13.9954mm
- Contact Material :
- Brass
- Termination :
- Solder
- Contact Type :
- Male Pin
- Shape :
- RECTANGULAR
- Insulator Color :
- Natural
- Height :
- 7.8mm
- Total Number of Contacts :
- 6
- Approval Agency :
- CSA
- Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- PCB Thickness :
- 800μm
- Polarization Key :
- POLARIZED HOUSING
- Orientation :
- Vertical
- Applications :
- GENERAL PURPOSE
- Insulation Height :
- 0.307 7.80mm
- Mating Contact Pitch :
- 0.079 inch
- Wire/Cable Gauge :
- 22 AWG
- IEC Conformance :
- No
- Contact Finish - Mating :
- Tin
- Lead Free :
- Lead Free
- Contact Current Rating :
- 4A
- Mounting Type :
- Surface Mount
- Datasheets
- 292172-6
CT Series 1-Row Header Solder Brass Tube Surface Mount Tin Polyamide (PA6T), Nylon 6T, Glass Filled 6-Position Board to Cable/Wire 0.307 7.80mm Height
292172-6 Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount.A Tube case is used to package the product.A product of the CT Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -40°C degrees.This device may be used for the purpose of General Purpose.Surface Mount represents the mounting point for the part.You're going to need 125V to power this memory.
292172-6 Features
CT series
292172-6 Applications
There are a lot of TE Connectivity AMP Connectors
292172-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
