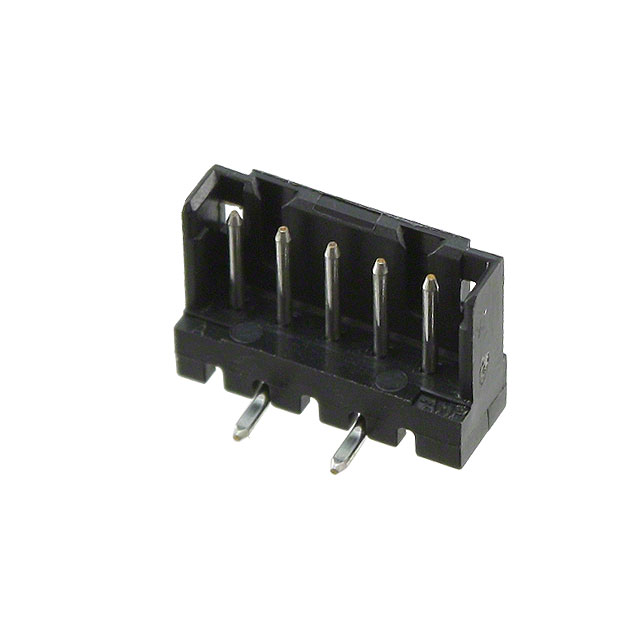

292172-5
Or copy the link below:
- Mfr.Part #
- 292172-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 5POS 2MM
- Stock
- 9
- In Stock ：
- 9
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Circular
- Orientation :
- Vertical
- Current Rating :
- 4A
- Mating Contact Pitch :
- 0.079 inch
- Contact Current Rating :
- 4A
- Operating Supply Voltage :
- 125V
- Insulator Color :
- Natural
- Polarization Key :
- POLARIZED HOUSING
- RoHS Status :
- RoHS Compliant
- Plating Thickness :
- 2μm
- Wire/Cable Type :
- Discrete
- Fastening Type :
- Detent Lock
- PCB Contact Pattern :
- STAGGERED
- Factory Lead Time :
- 18 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Post Length :
- 4.4958mm
- Mixed Contacts :
- No
- Contact Material :
- Brass
- Mount :
- Surface Mount
- Reliability :
- COMMERCIAL
- PCB Thickness :
- 800μm
- Min Operating Temperature :
- -40°C
- Style :
- Board to Cable/Wire
- Shape :
- RECTANGULAR
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Sealable :
- No
- DIN Conformance :
- No
- Number of Conductors :
- ONE
- Filter Feature :
- No
- Wire/Cable Gauge :
- 22 AWG
- Voltage - Rated :
- 125VAC
- Contact Gender :
- Male
- IEC Conformance :
- No
- Body Depth :
- 0.307 inch
- Series :
- CT
- Number of Positions Loaded :
- All
- Contact Finish - Mating :
- Tin
- Applications :
- GENERAL PURPOSE
- PCB Mount Retention :
- Without
- Number of Positions :
- 5
- UL Flammability Code :
- 94V-0
- Housing Color :
- Black
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Packaging :
- Tube
- Published :
- 2008
- Connector Type :
- Header
- Number Of PCB Rows :
- 2
- Pitch - Mating :
- 0.079 2.00mm
- Contact Resistance :
- 20mOhm
- Length :
- 12mm
- Mounting Type :
- Surface Mount
- Height :
- 7.8mm
- Durability :
- 30 Cycles
- Max Operating Temperature :
- 105°C
- Contact Type :
- Male Pin
- Insulation Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled
- Termination :
- Solder
- Pbfree Code :
- yes
- MIL Conformance :
- No
- Insulation Height :
- 0.307 7.80mm
- Approval Agency :
- UL
- Number of Rows :
- 1
- Total Number of Contacts :
- 5
- Contact Length - Mating :
- 0.177 4.50mm
- Shrouding :
- Shrouded - 3 Wall
- Current Rating (Amps) :
- Varies by WireGAuge
- Housing Material :
- Nylon
- Width :
- 3.9878mm
- Datasheets
- 292172-5
CT Series 1-Row Header Solder Brass Tube Surface Mount Tin Polyamide (PA6T), Nylon 6T, Glass Filled 5-Position Board to Cable/Wire 0.307 7.80mm Height
292172-5 Overview
Currently, it is packaged in Header.Mounting type Surface Mount is assigned to the device.Packaging the product involves using a Tube case.Among the products in the CT Series, it is one of the most popular.It works best at below 105°C.The device must be operated at a temperature of -40°C.The device could be used for General Purpose.Surface Mount is the mounting point for the part.There is a note indicating that this memory operates at an 125V volt supply voltage.
292172-5 Features
CT series
292172-5 Applications
There are a lot of TE Connectivity AMP Connectors
292172-5 Rectangular Connectors applications.
