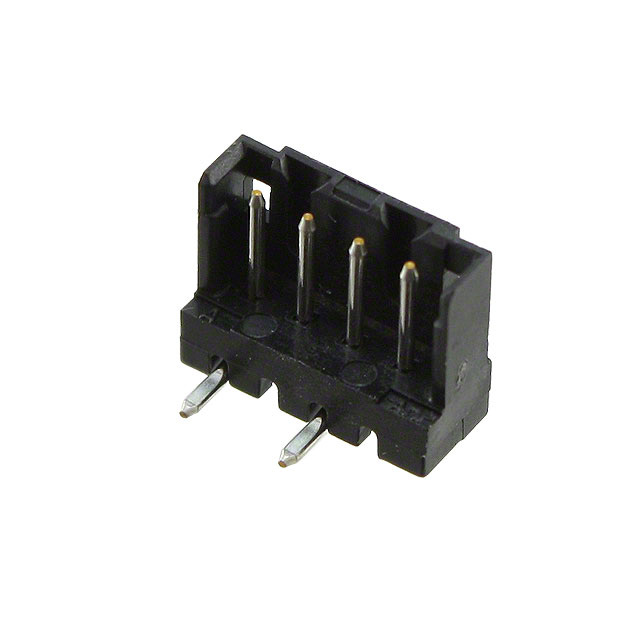

292172-4
Or copy the link below:
- Mfr.Part #
- 292172-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 4POS 2MM
- Stock
- 1,166
- In Stock ：
- 1,166
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Current Rating :
- 4A
- Operating Supply Voltage :
- 125V
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyphenylene
- Current Rating (Amps) :
- Varies by WireGAuge
- Mixed Contacts :
- No
- Material Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 3 Wall
- Number of Conductors :
- ONE
- Insulation Height :
- 0.307 7.80mm
- Packaging :
- Tube
- Contact Finish - Mating :
- Tin
- Wire/Cable Gauge :
- 22 AWG
- Number of Rows :
- 1
- Terminal Pitch :
- 2mm
- Factory Lead Time :
- 21 Weeks
- Width :
- 3.9878mm
- Filter Feature :
- No
- Sealable :
- No
- Mating Post Length :
- 4.4958mm
- Termination :
- Solder
- Number Of PCB Rows :
- 2
- Number of Positions Loaded :
- All
- Shape :
- RECTANGULAR
- PCB Mount Retention :
- Without
- Plating Thickness :
- 2μm
- Applications :
- GENERAL PURPOSE
- Pbfree Code :
- yes
- Contact Material :
- Brass
- Mounting Type :
- Surface Mount
- MIL Conformance :
- No
- Contact Gender :
- Male
- Approval Agency :
- UL
- Max Operating Temperature :
- 105°C
- Number of Positions :
- 4
- Series :
- CT
- Durability :
- 30 Cycles
- Polarization Key :
- POLARIZED HOUSING
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Mating Contact Pitch :
- 0.079 inch
- DIN Conformance :
- No
- Mount :
- Surface Mount
- Reliability :
- COMMERCIAL
- Insulator Color :
- Natural
- Housing Color :
- Black
- Body Depth :
- 0.307 inch
- Height :
- 7.8mm
- RoHS Status :
- RoHS Compliant
- IEC Conformance :
- No
- Insulation Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled
- PCB Thickness :
- 800μm
- Length :
- 10mm
- Contact Type :
- Male Pin
- PCB Contact Pattern :
- STAGGERED
- Contact Shape :
- Circular
- Contact Length - Mating :
- 0.177 4.50mm
- Contact Resistance :
- 20mOhm
- Voltage - Rated :
- 125VAC
- Wire/Cable Type :
- Discrete
- Style :
- Board to Cable/Wire
- Published :
- 2009
- Contact Current Rating :
- 4A
- Total Number of Contacts :
- 4
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -40°C
- Connector Type :
- Header
- Pitch - Mating :
- 0.079 2.00mm
- Orientation :
- Vertical
- Fastening Type :
- Detent Lock
- Datasheets
- 292172-4
CT Series 1-Row Header Solder Brass Tube Surface Mount Tin Polyamide (PA6T), Nylon 6T, Glass Filled 4-Position Board to Cable/Wire 0.307 7.80mm Height
292172-4 Overview
Packaging for this item is Header.There is a mounting type of Surface Mount for this device.It is necessary to use a Tube case for packaging the product.This product is part of the CT Series.You should use it when it's below 105°C.A minimum temperature of -40°C is required for the operation of this device.A possible application for the device is General Purpose.Surface Mount is used to mount the part.The operating supply voltage of this memory is 125V.
292172-4 Features
CT series
292172-4 Applications
There are a lot of TE Connectivity AMP Connectors
292172-4 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
