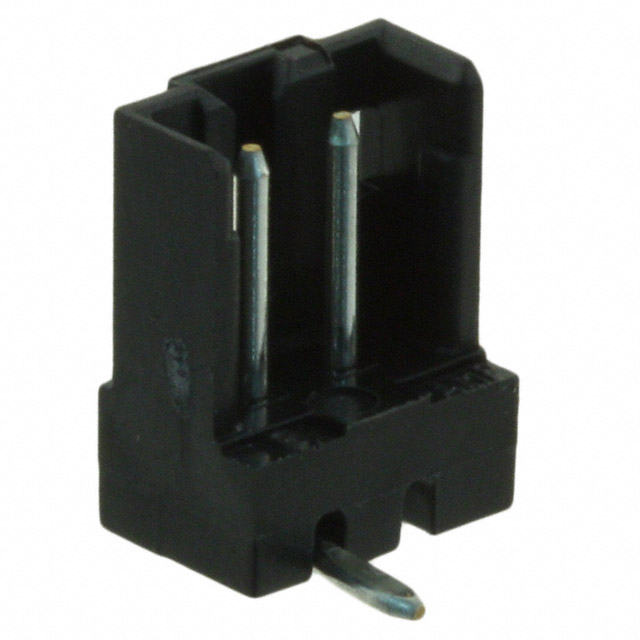

292172-2
Or copy the link below:
- Mfr.Part #
- 292172-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 2POS 2MM
- Stock
- 19,000
- In Stock ：
- 19,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Factory Lead Time :
- 21 Weeks
- Width :
- 3.9878mm
- Contact Type :
- Male Pin
- Wire/Cable Gauge :
- 22 AWG
- Voltage - Rated :
- 125VAC
- Orientation :
- Vertical
- Mounting Type :
- Surface Mount
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.079 2.00mm
- Polarization Key :
- POLARIZED HOUSING
- PCB Mount Retention :
- Without
- Mating Post Length :
- 4.4958mm
- Approval Agency :
- UL
- Number of Conductors :
- ONE
- ECCN Code :
- EAR99
- Style :
- Board to Cable/Wire
- MIL Conformance :
- No
- Published :
- 2009
- Contact Material :
- Brass
- Applications :
- GENERAL PURPOSE
- Shrouding :
- Shrouded - 3 Wall
- Shape :
- RECTANGULAR
- Contact Length - Mating :
- 0.177 4.50mm
- Total Number of Contacts :
- 2
- Mating Contact Pitch :
- 0.079 inch
- Number Of PCB Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- IEC Conformance :
- No
- Housing Material :
- Nylon
- Housing Color :
- Black
- Contact Finish - Mating :
- Tin
- Length :
- 6mm
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.307 7.80mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Filter Feature :
- No
- PCB Thickness :
- 800μm
- Current Rating :
- 4A
- Wire/Cable Type :
- Discrete
- Connector Type :
- Header
- Durability :
- 30 Cycles
- Mount :
- Surface Mount
- Insulator Color :
- Natural
- ELV :
- Compliant
- Contact Shape :
- Circular
- Fastening Type :
- Detent Lock
- DIN Conformance :
- No
- Operating Supply Voltage :
- 125V
- Mixed Contacts :
- No
- Pbfree Code :
- yes
- Min Operating Temperature :
- -40°C
- Flammability Rating :
- UL94 V-0
- Body Depth :
- 0.307 inch
- Height :
- 7.8mm
- Sealable :
- No
- Reliability :
- COMMERCIAL
- Contact Gender :
- Male
- Series :
- CT
- Number of Positions :
- 2
- Plating Thickness :
- 2μm
- Insulation Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled
- HTS Code :
- 8536.69.40.40
- Max Operating Temperature :
- 105°C
- Packaging :
- Tube
- Number of Rows :
- 1
- Contact Current Rating :
- 4A
- PCB Contact Pattern :
- STAGGERED
- UL Flammability Code :
- 94V-0
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Datasheets
- 292172-2
CT Series 1-Row Header Solder Brass Tube Surface Mount Tin Polyamide (PA6T), Nylon 6T, Glass Filled 2-Position Board to Cable/Wire 0.307 7.80mm Height
292172-2 Overview
It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Tube case is used.It belongs to the CT Series of products.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -40°C.General Purpose is a possible application for the device.The part is mounted by Surface Mount.This memory's operating supply voltage is 125V.
292172-2 Features
CT series
292172-2 Applications
There are a lot of TE Connectivity AMP Connectors
292172-2 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
