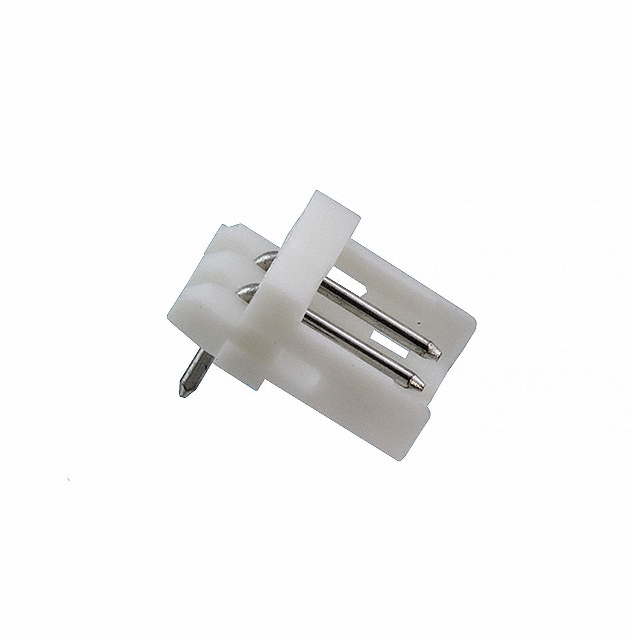

292168-2
Or copy the link below:
- Mfr.Part #
- 292168-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 2POS 2MM
- Stock
- 47,683
- In Stock ：
- 47,683
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Length :
- 5.8mm
- Contact Current Rating :
- 4A
- Packaging :
- Tube
- Min Operating Temperature :
- -40°C
- Mount :
- Through Hole
- Orientation :
- RIGHT ANGLE
- Fastening Type :
- Detent Lock
- Material Flammability Rating :
- UL94 V-0
- Max Operating Temperature :
- 105°C
- Number of Positions :
- 2
- Current Rating :
- 4A
- Contact Finish - Mating :
- Tin
- Factory Lead Time :
- 12 Weeks
- Housing Color :
- Natural
- Number of Rows :
- 1
- PCB Mount Retention :
- Without
- Lead Free :
- Lead Free
- Sealable :
- No
- Contact Length - Mating :
- 0.177 4.50mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Mating Post Length :
- 4.4958mm
- Housing Material :
- PBT
- Operating Supply Voltage :
- 125V
- Max Voltage Rating (DC) :
- 125.125kV
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Type :
- Male Pin
- Insulation Height :
- 0.157 4.00mm
- Shrouding :
- Shrouded - 3 Wall
- Mounting Type :
- Through Hole, Right Angle
- Approval Agency :
- UL
- Connector Type :
- Header
- Wire/Cable Gauge :
- 22 AWG
- Width :
- 3.9878mm
- Plating Thickness :
- 2μm
- Termination :
- Solder
- Applications :
- GENERAL PURPOSE
- Contact Shape :
- Circular
- Length - Tail :
- 3.2mm
- Height :
- 8.8mm
- Series :
- CT
- Shape :
- RECTANGULAR
- Current Rating (Amps) :
- Varies by WireGAuge
- Published :
- 2010
- Contact Length - Post :
- 0.126 3.20mm
- ELV :
- Compliant
- Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- Wire/Cable Type :
- Discrete
- PCB Thickness :
- 800μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Board to Cable/Wire
- Voltage - Rated :
- 125VAC
- RoHS Status :
- RoHS Compliant
- Number of Positions Loaded :
- All
- Pitch - Mating :
- 0.079 2.00mm
- Datasheets
- 292168-2
CT Series 1-Row Header Solder Brass Tube Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.157 4.00mm Height
292168-2 Overview
Packaging for this item is Header.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Tube case for packaging the product.This product is part of the CT Series.You should use it when it's below 105°C.A minimum temperature of -40°C is required for the operation of this device.A possible application for the device is General Purpose.Through Hole is used to mount the part.The operating supply voltage of this memory is 125V.
292168-2 Features
CT series
292168-2 Applications
There are a lot of TE Connectivity AMP Connectors
292168-2 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
