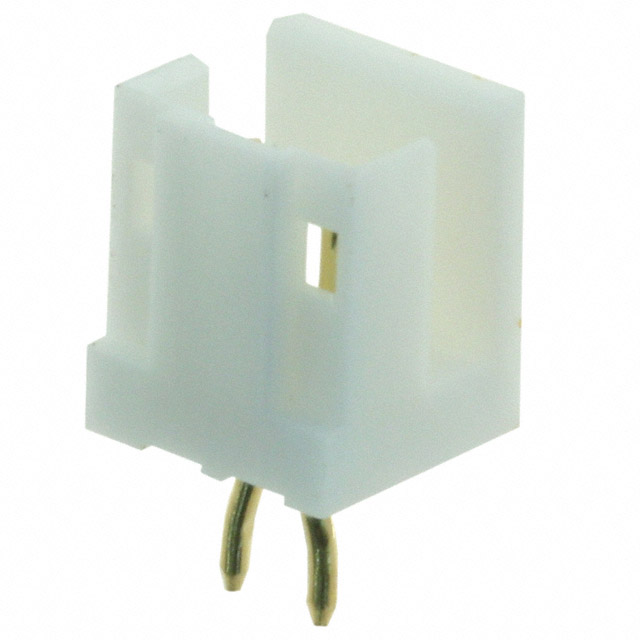

292134-2
Or copy the link below:
- Mfr.Part #
- 292134-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 2MM
- Stock
- 18,297
- In Stock ：
- 18,297
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mating Post Length :
- 4.2mm
- Contact Length - Mating :
- 0.165 4.20mm
- Contact Current Rating :
- 4A
- Applications :
- GENERAL PURPOSE
- Color :
- Natural
- Current Rating :
- 4A
- Mating Retention :
- Without
- Contact Material :
- Brass
- Overall Contact Length :
- 0.358 9.09mm
- Housing Material :
- Nylon
- Insulation Color :
- Natural
- Current Rating (Amps) :
- Varies by WireGAuge
- Mounting Type :
- Through Hole
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Shape :
- RECTANGULAR
- Connector Type :
- Header
- ELV :
- Compliant
- Number of Positions Loaded :
- All
- PCB Mount Alignment :
- Without
- Mount :
- Through Hole
- Pitch - Mating :
- 0.079 2.00mm
- Insulation Height :
- 0.268 6.80mm
- Contact Resistance :
- 30mOhm
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Housing Color :
- Natural
- Fastening Type :
- Detent Lock
- Width :
- 5.8mm
- Contact Type :
- Male Pin
- Length - Tail :
- 3.2mm
- Depth :
- 5.8mm
- Operating Supply Voltage :
- 125V
- Wire/Cable Gauge :
- 22 AWG
- Contact Gender :
- Male
- Series :
- CT
- Plating Thickness :
- 200 nm
- Packaging :
- Bulk
- Wire/Cable Type :
- Discrete
- Pitch :
- 2mm
- Min Operating Temperature :
- -40°C
- Contact Plating :
- Gold
- Number of Contacts :
- 2
- Number of Positions :
- 2
- PCB Mounting Orientation :
- Vertical
- Voltage - Rated :
- 125VAC
- Contact Finish Thickness - Mating :
- 200 nm
- Published :
- 2009
- Shrouding :
- Shrouded - 4 Wall
- Sealable :
- No
- Length :
- 5.8mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Number of Rows :
- 1
- Contact Length - Post :
- 0.126 3.20mm
- Max Operating Temperature :
- 105°C
- PCB Mount Retention :
- With
- Plating :
- Gold
- Height :
- 6.7818mm
- Orientation :
- Vertical
- Contact Shape :
- Circular
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Kinked Pin, Solder
- Flammability Rating :
- UL94 V-0
- Radiation Hardening :
- No
- PCB Thickness :
- 800μm
- Factory Lead Time :
- 12 Weeks
- Style :
- Board to Cable/Wire
- Contact Finish - Mating :
- Gold
- Approval Agency :
- UL
- Datasheets
- 292134-2
CT Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole Gold Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.268 6.80mm Height
292134-2 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the CT Series of products.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -40°C.General Purpose is a possible application for the device.The part is mounted by Through Hole.This memory's operating supply voltage is 125V.
292134-2 Features
CT series
292134-2 Applications
There are a lot of TE Connectivity AMP Connectors
292134-2 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
