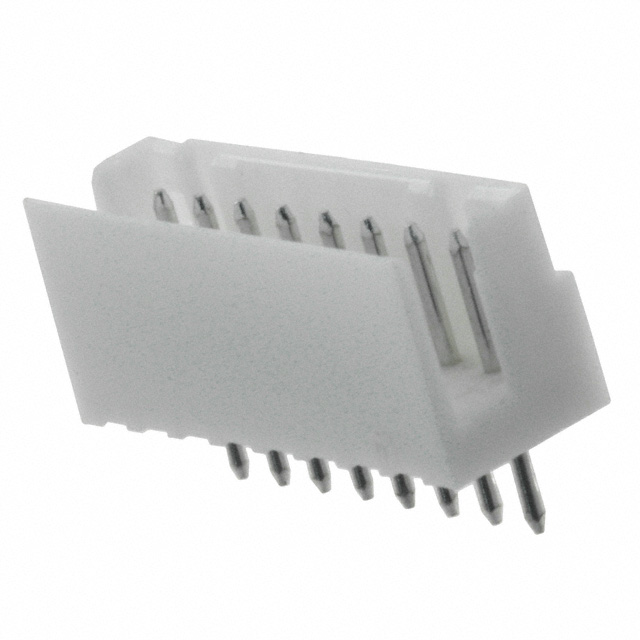

292133-8
Or copy the link below:
- Mfr.Part #
- 292133-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 2MM
- Stock
- 69
- In Stock ：
- 69
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Orientation :
- Vertical
- PCB Mount Retention :
- Without
- Length - Tail :
- 3.2mm
- Min Operating Temperature :
- -22°C
- Fastening Type :
- Detent Lock
- Approval Agency :
- UL
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Width :
- 5.8mm
- Number of Rows :
- 1
- PCB Thickness :
- 800μm
- Lead Free :
- Lead Free
- Height :
- 6.7818mm
- Contact Finish - Mating :
- Tin
- Max Operating Temperature :
- 221°C
- Pitch - Mating :
- 0.079 2.00mm
- Number of Positions Loaded :
- All
- Housing Material :
- Nylon
- Housing Color :
- Natural
- Number of Positions :
- 8
- Wire/Cable Type :
- Discrete
- Contact Material :
- Brass
- Style :
- Board to Cable/Wire
- Connector Type :
- Header
- Color :
- Natural
- Applications :
- GENERAL PURPOSE
- Mounting Type :
- Through Hole
- Mating Post Length :
- 4.2mm
- Contact Current Rating :
- 4A
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- ELV :
- Compliant
- Voltage - Rated :
- 125VAC
- Contact Length - Mating :
- 0.165 4.20mm
- Contact Shape :
- Circular
- Contact Gender :
- Male
- Contact Plating :
- Tin
- Shape :
- RECTANGULAR
- Contact Length - Post :
- 0.126 3.20mm
- Length :
- 17.8mm
- Current Rating :
- 4A
- Insulation Height :
- 0.268 6.80mm
- Sealable :
- No
- Radiation Hardening :
- No
- Termination :
- Solder
- Pitch :
- 2mm
- Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 8
- Depth :
- 5.8mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Insulation Color :
- Natural
- Published :
- 2009
- Mating Retention :
- Without
- Overall Contact Length :
- 0.358 9.09mm
- Operating Supply Voltage :
- 125V
- Packaging :
- Bulk
- Factory Lead Time :
- 8 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Mount Alignment :
- Without
- Wire/Cable Gauge :
- 22 AWG
- Contact Resistance :
- 20mOhm
- Contact Finish - Post :
- Tin
- Series :
- CT
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 4 Wall
- Max Voltage Rating (AC) :
- 125V
- PCB Mounting Orientation :
- Vertical
- Mount :
- Through Hole
- Plating :
- Tin
- Datasheets
- 292133-8
CT Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 8-Position Board to Cable/Wire 0.268 6.80mm Height
292133-8 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the CT Series.When the temperature is below 221°C, it is best to use it.A minimum operating temperature of -22°C is required for this device.The device could be used for the following application: General Purpose.Part Through Hole is mounted to the part.125V is the operating supply voltage for this memory.
292133-8 Features
CT series
292133-8 Applications
There are a lot of TE Connectivity AMP Connectors
292133-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
