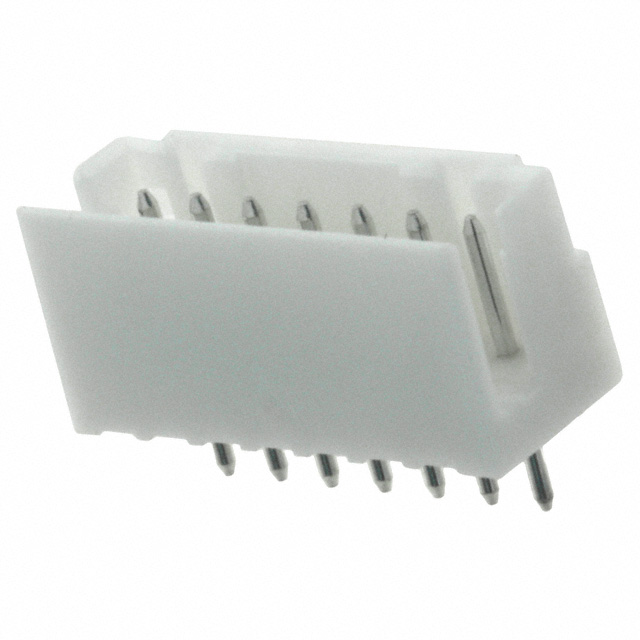

292133-7
Or copy the link below:
- Mfr.Part #
- 292133-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 7POS 2MM
- Stock
- 26
- In Stock ：
- 26
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Radiation Hardening :
- No
- Mating Post Length :
- 4.2mm
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Contact Finish - Post :
- Tin
- Wire/Cable Type :
- Discrete
- Mounting Type :
- Through Hole
- Width :
- 5.8mm
- Contact Type :
- Male Pin
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Mount :
- Through Hole
- PCB Thickness :
- 800μm
- Length - Tail :
- 3.2mm
- Orientation :
- Vertical
- Fastening Type :
- Detent Lock
- Current Rating :
- 4A
- Applications :
- GENERAL PURPOSE
- Contact Current Rating :
- 4A
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Sealable :
- No
- PCB Mounting Orientation :
- Vertical
- Contact Resistance :
- 20mOhm
- Approval Agency :
- UL
- Contact Length - Mating :
- 0.165 4.20mm
- Shrouding :
- Shrouded - 4 Wall
- Series :
- CT
- Connector Type :
- Header
- Flammability Rating :
- UL94 V-0
- Contact Gender :
- Male
- Contact Shape :
- Circular
- Style :
- Board to Cable/Wire
- Color :
- Natural
- Contact Finish - Mating :
- Tin
- PCB Mount Alignment :
- Without
- Number of Positions :
- 7
- Packaging :
- Bulk
- Min Operating Temperature :
- -22°C
- Insulation Color :
- Natural
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.268 6.80mm
- Pitch - Mating :
- 0.079 2.00mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Rows :
- 1
- RoHS Status :
- RoHS Compliant
- Voltage - Rated :
- 125VAC
- Overall Contact Length :
- 0.358 9.09mm
- Factory Lead Time :
- 12 Weeks
- Housing Color :
- Natural
- Shape :
- RECTANGULAR
- PCB Mount Retention :
- Without
- Housing Material :
- Nylon
- Length :
- 15.8mm
- Operating Supply Voltage :
- 125V
- Max Voltage Rating (AC) :
- 125V
- Contact Plating :
- Tin
- Wire/Cable Gauge :
- 22 AWG
- Contact Length - Post :
- 0.126 3.20mm
- Number of Contacts :
- 7
- Plating :
- Tin
- Contact Material :
- Brass
- Depth :
- 5.8mm
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Retention :
- Without
- Max Operating Temperature :
- 221°C
- Pitch :
- 2mm
- Published :
- 2009
- Height :
- 6.7818mm
- Datasheets
- 292133-7
CT Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 7-Position Board to Cable/Wire 0.268 6.80mm Height
292133-7 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the CT Series.Use it below 221°C.A minimum temperature of -22°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose.By Through Hole, the part is mounted.The operating voltage of this memory is 125V.
292133-7 Features
CT series
292133-7 Applications
There are a lot of TE Connectivity AMP Connectors
292133-7 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
