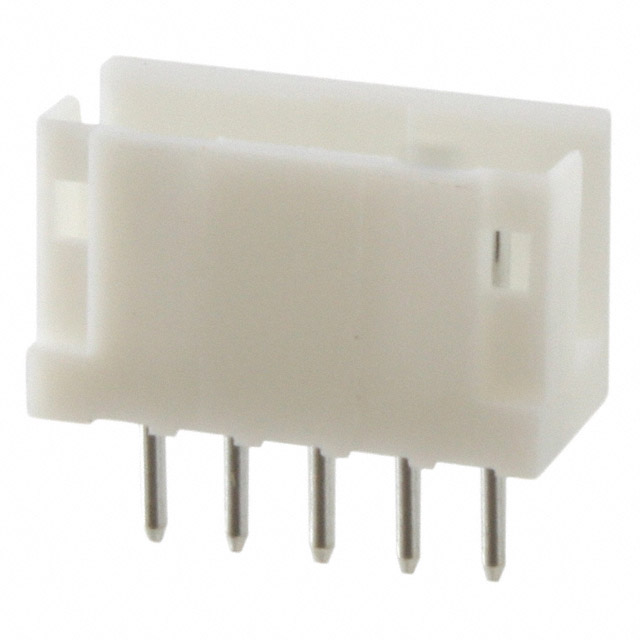

292133-5
Or copy the link below:
- Mfr.Part #
- 292133-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 2MM
- Stock
- 28,379
- In Stock ：
- 28,379
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.079 2.00mm
- Contact Finish - Mating :
- Tin
- Number of Positions :
- 5
- Shape :
- RECTANGULAR
- Length - Tail :
- 3.2mm
- Wire/Cable Type :
- Discrete
- Orientation :
- Vertical
- Contact Shape :
- Circular
- Mating Retention :
- Without
- Contact Resistance :
- 20mOhm
- Connector Type :
- Header
- Plating :
- Tin
- Max Operating Temperature :
- 221°C
- Max Voltage Rating (AC) :
- 125V
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Contacts :
- 5
- Length :
- 11.7983mm
- Min Operating Temperature :
- -22°C
- RoHS Status :
- RoHS Compliant
- Overall Contact Length :
- 0.358 9.09mm
- PCB Mounting Orientation :
- Vertical
- Series :
- CT
- Contact Current Rating :
- 4A
- PCB Mount Retention :
- Without
- Fastening Type :
- Detent Lock
- Housing Material :
- Nylon
- Factory Lead Time :
- 12 Weeks
- Style :
- Board to Cable/Wire
- Height :
- 6.7818mm
- Width :
- 5.8mm
- Number of Positions Loaded :
- All
- Operating Supply Voltage :
- 125V
- Termination :
- Solder
- Depth :
- 5.8mm
- Current Rating :
- 4A
- Contact Plating :
- Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Mounting Type :
- Through Hole
- ELV :
- Compliant
- Sealable :
- No
- Color :
- Natural
- Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Applications :
- GENERAL PURPOSE
- Insulation Height :
- 0.268 6.80mm
- Shrouding :
- Shrouded - 4 Wall
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Brass
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- PCB Mount Alignment :
- Without
- Voltage - Rated :
- 125VAC
- Contact Length - Post :
- 0.126 3.20mm
- Material Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Contact Finish - Post :
- Tin
- PCB Thickness :
- 800μm
- Contact Length - Mating :
- 0.165 4.20mm
- Contact Finish Thickness - Mating :
- 1μm
- Mating Post Length :
- 4.2mm
- Wire/Cable Gauge :
- 22 AWG
- Published :
- 2009
- Pitch :
- 2mm
- Insulation Color :
- Natural
- Housing Color :
- Natural
- Number of Rows :
- 1
- Mount :
- Through Hole
- Radiation Hardening :
- No
- Approval Agency :
- UL
- Datasheets
- 292133-5
CT Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 5-Position Board to Cable/Wire 0.268 6.80mm Height
292133-5 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number CT belongs to the CT Series.Whenever the temperature is below 221°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In addition to General Purpose, there are other possible applications for the device.There is a Through Hole mount on the part.A 125V voltage is used to supply power to this memory.
292133-5 Features
CT series
292133-5 Applications
There are a lot of TE Connectivity AMP Connectors
292133-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
