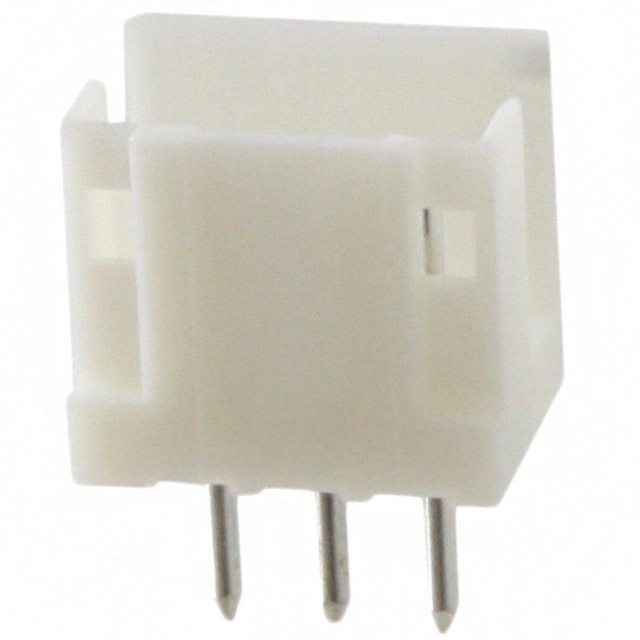

292133-3
Or copy the link below:
- Mfr.Part #
- 292133-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2MM
- Stock
- 13,840
- In Stock ：
- 13,840
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Termination :
- Solder
- Filter Feature :
- No
- Contact Gender :
- Male
- Number of Positions Loaded :
- All
- Reliability :
- COMMERCIAL
- PCB Thickness :
- 800μm
- Width :
- 5.8mm
- Connector Type :
- Header
- Depth :
- 5.8mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Length - Post :
- 0.126 3.20mm
- Insulator Color :
- Black
- Voltage - Rated :
- 125VAC
- Current Rating :
- 4A
- Shape :
- RECTANGULAR
- Max Voltage Rating (AC) :
- 125V
- MIL Conformance :
- No
- Number Of PCB Rows :
- 1
- Max Operating Temperature :
- 221°C
- Insulation Height :
- 0.268 6.80mm
- Length - Tail :
- 3.2mm
- Mating Post Length :
- 4.2mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Pitch - Mating :
- 0.079 2.00mm
- Flammability Rating :
- UL94 V-0
- Max Voltage Rating (DC) :
- 125V
- Applications :
- GENERAL PURPOSE
- Polarization Key :
- POLARIZED HOUSING
- Number of Conductors :
- ONE
- IEC Conformance :
- No
- Wire/Cable Gauge :
- 22 AWG
- Wire/Cable Type :
- Discrete
- Plating Thickness :
- 40μin
- ECCN Code :
- EAR99
- Operating Supply Voltage :
- 125V
- Reference Standard :
- UL
- Contact Type :
- Male Pin
- Fastening Type :
- Detent Lock
- Pbfree Code :
- yes
- Contact Shape :
- Circular
- Packaging :
- Bulk
- Mating Contact Pitch :
- 0.079 inch
- Body Breadth :
- 0.228 inch
- Material Flammability Rating :
- UL94 V-0
- Contact Resistance :
- 20mOhm
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Height :
- 6.7818mm
- Housing Material :
- Nylon
- Overall Contact Length :
- 0.358 9.09mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Finish - Mating :
- Tin
- Factory Lead Time :
- 8 Weeks
- Number of Rows :
- 1
- ELV :
- Compliant
- Radiation Hardening :
- No
- Series :
- CT
- Contact Length - Mating :
- 0.165 4.20mm
- PCB Mount Retention :
- Without
- Shrouding :
- Shrouded - 4 Wall
- Published :
- 2009
- Mixed Contacts :
- No
- Length :
- 7.8mm
- Approval Agency :
- UL
- Contact Material :
- Brass
- UL Flammability Code :
- 94V-0
- Housing Color :
- Natural
- Style :
- Board to Cable/Wire
- Contact Current Rating :
- 4A
- Number of Positions :
- 3
- DIN Conformance :
- No
- Orientation :
- Vertical
- Min Operating Temperature :
- -22°C
- Contact Finish Thickness - Mating :
- 1μm
- RoHS Status :
- RoHS Compliant
- Datasheets
- 292133-3
CT Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 3-Position Board to Cable/Wire 0.268 6.80mm Height
292133-3 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the CT Series.If the temperature is below 221°C, it's best to use it.-22°C is the minimum temperature for this device.There are a variety of possible applications for this device, including General Purpose.There is a mounting hole at Through Hole.It runs on 125V voltage.
292133-3 Features
CT series
292133-3 Applications
There are a lot of TE Connectivity AMP Connectors
292133-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
