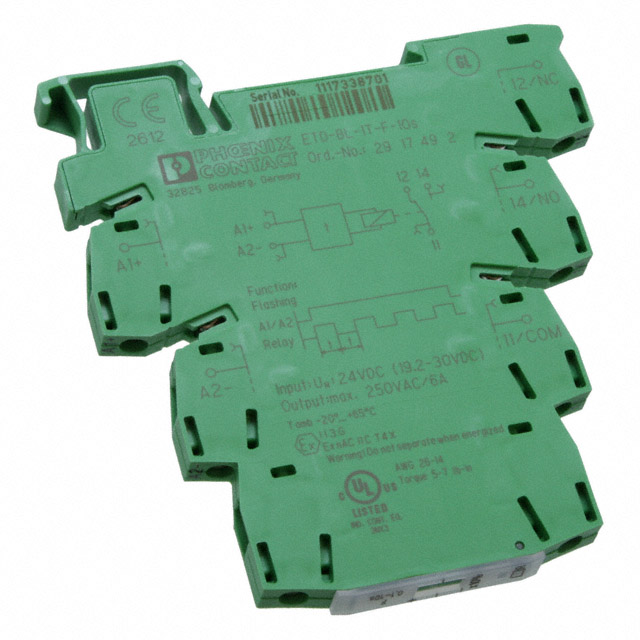

2917492

Manufacturer :

Phoenix Contact

Product Category :

Time Delay Relays

Ratings :

IP20

Function :

Repeat Cycle

RoHS Status :

RoHS Compliant

Depth :

86mm

Current Rating :

6.3A

Packaging :

Bulk

Mounting Type :

DIN Rail

Width :

6.2mm

Max Operating Temperature :

65°C

Relay Type :

Mechanical Relay

Timing Initiate Method :

Input Voltage

Factory Lead Time :

4 Weeks

Timing Adjustment Method :

Screwdriver Slot

Length :

80mm

Package / Case :

300

Published :

2009

Voltage - Rated DC :

30V

Circuit :

SPDT (1 Form C)

Height :

86mm

Delay Time :

0.1 Sec ~ 10 Sec

Switching Capacity :

1.125 kW

Termination Style :

Screw Terminal

Max Current Rating :

6.3A

Min Operating Temperature :

-20°C

Weight :

80.000001g

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

DIN Rail

Throw Configuration :

SPDT

Voltage - Supply :

24VDC

Termination :

Screw

Contact Rating @ Voltage :

6A @ 250VAC

Operating Supply Voltage :

30V

Series :

ETD-BL-1T

Coil Voltage (DC) :

24V

Number of Contacts :

1
